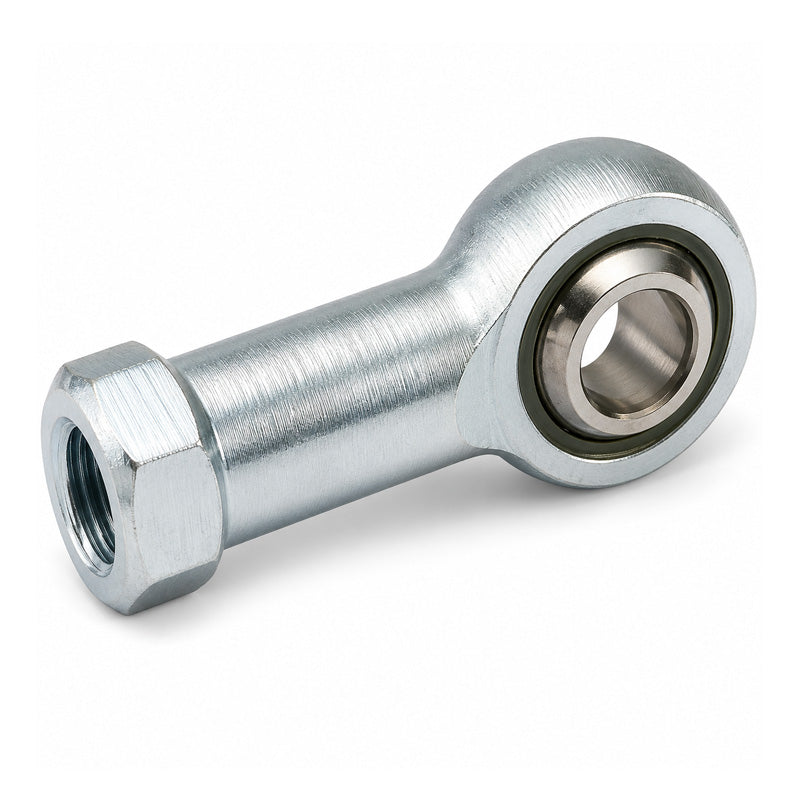

ISB TSF20BB-E Right Hand Maintenance Required Steel/Steel Plain Female Rod End M20 Thread

TSM..BB and TSF..BB Series Heavy Duty Rod End Bearings:: This series have integrated double-line self-aligning ball bearings, self-lubricated by a special high-speed bearing grease. In TSM..BB-O and TSF..BB-O series, balls are centred on outer body instead of inner ring. TSM..BB-E and TSF..BB-E are different because an edge at the beginning of the thread is present. TSM..BB, TSF..BB, TSM..BB-O, TSF..BB-O, TSM..BB-E and TSF..BB-E series are available with left/right hand screw, inner/outer thread, metric and inches size.

Brand / Quality:

ISB-Good Quality

Thread Size:

M16

Thread M / F:

Female

Thread Direction:

Right Hand

Bore:

20

Inside Diameter:

20

Material:

Steel/Steel
