ISB TSML16.1 Left Hand Maintenance Required Steel/Bronze Lined Plain Female Rod End M16 Thread
ISB TSML16.1 Left Hand Maintenance Required Steel/Bronze Lined Plain Female Rod End M16 Thread
Equivalent to: TSML16.1
Out of stock
Share this product
Description
Description
TSF - TSM Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Bore:
- 16
- Inside Diameter:
- 16
- Material:
- Steel/Bronze Lined

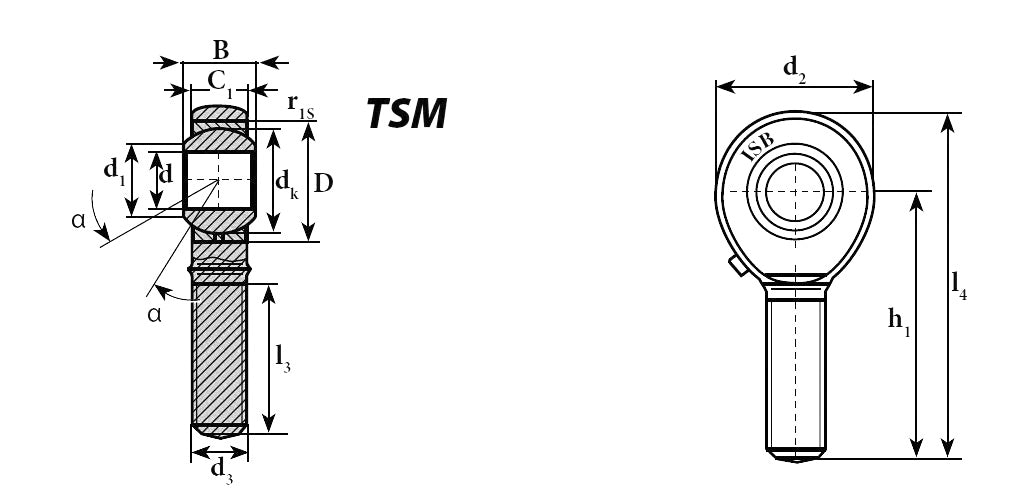

Technical
Technical
| d | 16mm |
|---|---|
| d1 | 19.3mm |
| d2 | 40mm |
| d3 | M 16x1.5mm |
| dk | 28.58mm |
| B | 21mm |
| C1 | 15mm |
| D | 32mm |
| h1 | 66mm |
| I3 | 40mm |
| I4 | 85mm |
| α | 15° |
| r 1s min | 0.3mm |
| Dynamic C | 21KN |
| Static C0 | 28KN |
| Weight | 0.18Kg |
