SKU: TST-M-SNR

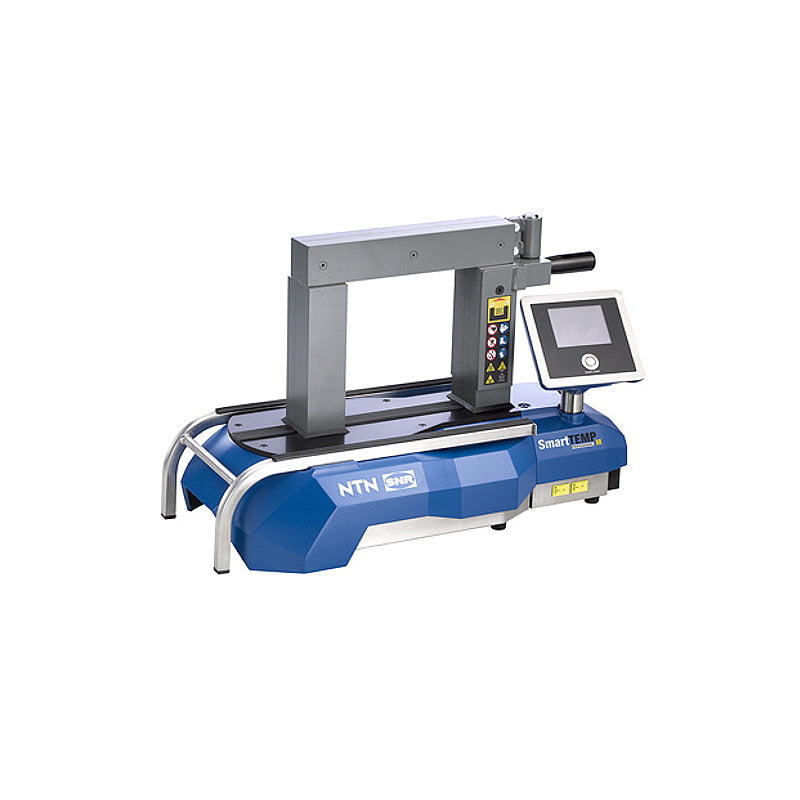

SNR Medium SmartTEMP 230V Induction Heater for up to 100kg Bearings - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
SNR SmartTEMP Induction Heaters: These heaters can heat parts such as bearings, sprockets, and other mechanical parts of the same weight. These heaters were designed for professional use and are suitable for both maintenance services and production lines. The SmartTEMP range heaters provide 4 dedicated heating modes: Temperature (one sensor), Temperature (two sensors), Ramp, and Timer, which can be adapted to suit specific parts or applications. Compared to standard heating devices, these SmartTemp heaters provide 30% savings in heating time and significantly reduce energy consumption. As we stock several SmartTemp heaters it is important to choose the correct heater. This can depend on several factors such as part weight, part dimensions, part sensitivity, required temperature range, electrical power and voltage
Benefits: Easy to use, High performance, Touchscreen interface
- Brand / Quality:
- SNR - High Quality
- Width:
- 275mm
- Height:
- 365mm
- Length:
- 540mm
- Size:
- Up to: 100kg
Technical
| Length | 540mm |
|---|---|
| Width | 275mm |
| Height | 365mm |
| Min bearing bore diameter | 10mm |
| Max bearing outer diameter | 500mm |
| Max power input | 3.7kVA |
| Max voltage | 230V |
| Max current | 16A |
| Frequency | 50Hz |
| Max temperature setup | 240 Deg C |
| Temperature holding at the end of cycle | Yes |
| Demagnetization | Yes |
| Max part weight | 100kg |
| Max width | 180mm |
| Weight | 40kg |
