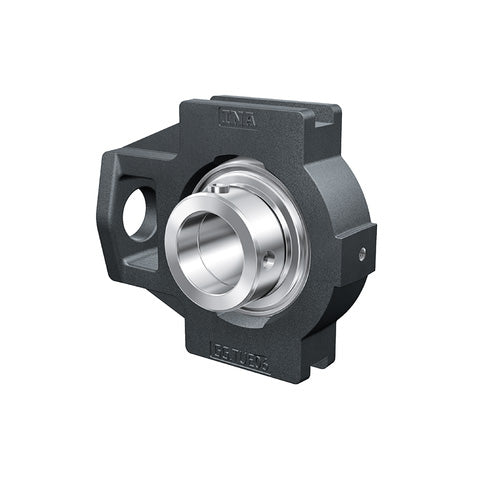

• INA TTUE70XL Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore
  • INA
1 2

SKU: TTUE70-XL-INA

INA TTUE70XL Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore

INA TTUE70XL Cast Iron Take Up Unit with Eccentric Collar Insert 70mm Bore
$386.88 ex VAT
$386.88 ex VAT
Sale Sold out

In stock

Price Break
4+ $259.14
9+ $244.58
19+ $241.67
29+ $238.76
39+ $235.85
49+ $232.94
59+ $218.38
69+ $215.47
79+ $212.55
89+ $209.64
99+ $203.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
70mm
Style:
TTUE
Technical
d 70mm
L 214mm
H 166mm
A 70mm
A1 25mm (Tolerance: H13)
A2 50mm
B1 66mm
d3 max 96mm
H1 151mm (Tolerance: +/-0.25)
L1 135mm
L2 20mm
L3 120mm
N 41mm
N1 35mm
N2 70mm
Q M6
S1 44.5mm
T 110mm
Mass 6.85 kg
Basic dynamic load rating Cr 66000 N
Basic static load rating Cor 44000 N
Designation of housing TUE13/14
Designation of bearing GE70-XL-KTT-B
