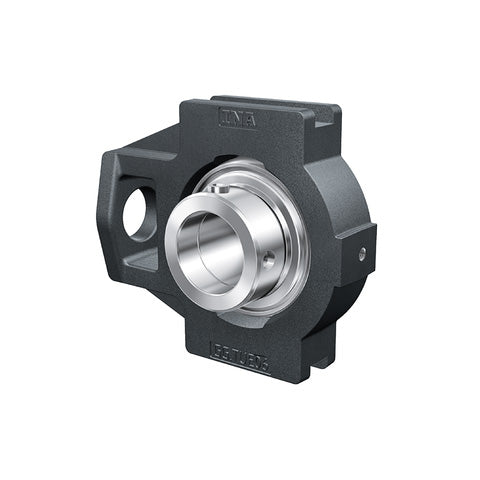

• INA TTUE80XL Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore
  • INA
1 2

SKU: TTUE80-XL-INA

INA TTUE80XL Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore

INA TTUE80XL Cast Iron Take Up Unit with Eccentric Collar Insert 80mm Bore
$584.04 ex VAT
$584.04 ex VAT
Sale Sold out

In stock

Price Break
4+ $391.21
9+ $369.23
19+ $364.83
29+ $360.44
39+ $356.04
49+ $351.65
59+ $329.67
69+ $325.27
79+ $320.88
89+ $316.48
99+ $307.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
80mm
Style:
TTUE
Technical
d 80mm
L 230mm
H 184mm
A 70mm
A1 28mm (Tolerance: H13)
A2 50mm
B1 70.7mm
d3 max 108mm
H1 165mm (Tolerance: +/-0.25)
L1 140mm
L2 20mm
L3 120mm
N 41mm
N1 35mm
N2 70mm
Q M6
S1 47.3mm
T 110mm
Mass 7.7 kg
Basic dynamic load rating Cr 76000 N
Basic static load rating Cor 54000 N
Designation of housing TUE16
Designation of bearing GE80-XL-KTT-B
