SKU: TU2.TF-SKF

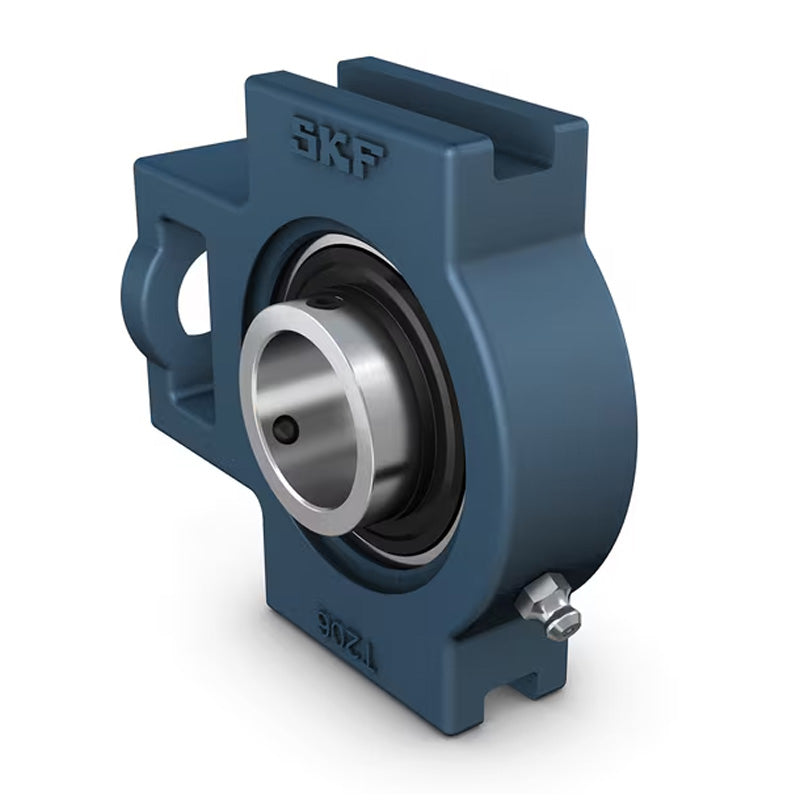

SKF TU2TF Grub Screw Type Take Up Unit 2 inch Bore
SKF TU2TF Grub Screw Type Take Up Unit 2 inch Bore
Regular price
$196.43
ex VAT
Regular price
Sale price
$196.43
ex VAT
In stock
Price Break
10+
$131.58
20+
$124.19
30+
$122.71
40+
$121.23
50+
$119.75
75+
$118.28
100+
$110.88
200+
$109.40
250+
$107.93
500+
$106.45
1000+
$103.49
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- TU
Technical
Technical
| d | 2 inch |
|---|---|
| A | 64mm |
| A1 | 27mm |
| A2 | 41mm |
| B | 55.6mm |
| D1 | 35mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 171mm |
| L1 | 106mm |
| L2 | 19mm |
| L3 | 95mm |
| N | 64mm |
| N1 | 25mm |
| s1 | 33.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 4000 rpm |
| A5 | 34mm |
| Weight | 3.85 kg |
