SKU: TU45TF-SKF
SKF TU45TF Grub Screw Type Take Up Unit 45mm Bore
SKF TU45TF Grub Screw Type Take Up Unit 45mm Bore
Regular price
$125.69
ex VAT
Regular price
Sale price
$125.69
ex VAT
In stock
Price Break
10+
$84.20
20+
$79.47
30+
$78.52
40+
$77.58
50+
$76.63
75+
$75.68
100+
$70.95
200+
$70.01
250+
$69.06
500+
$68.12
1000+
$66.22
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- TU
Technical

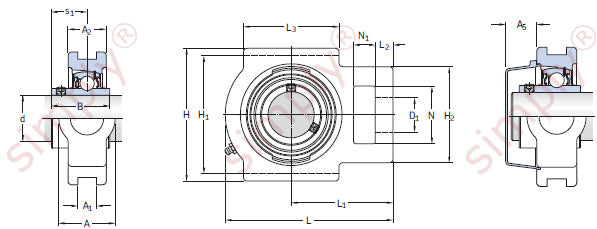

Technical
| d | 45mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 35mm |
| B | 49.2mm |
| D1 | 29mm |
| H | 117mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 87mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 49mm |
| N1 | 19mm |
| s1 | 30.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 2.3 kg |
| Compatible end cover | ECY209 |
