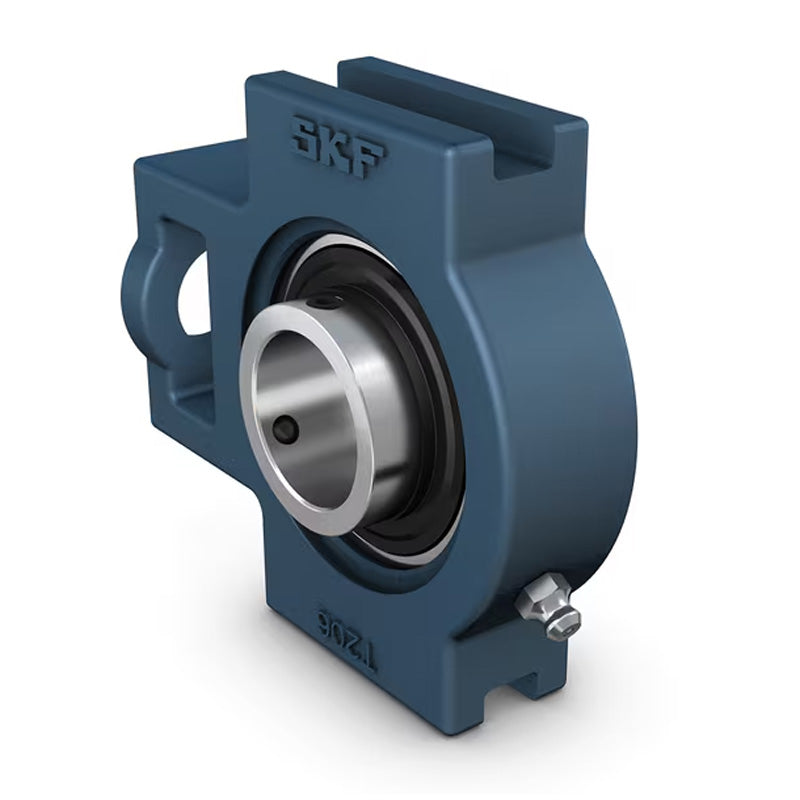

SKF TUJ40TF Grub Screw Type Take Up Unit 40mm Bore
SKF TUJ40TF Grub Screw Type Take Up Unit 40mm Bore
Regular price
$113.80
ex VAT
Regular price
Sale price
$113.80
ex VAT
In stock
Price Break
10+
$76.23
20+
$71.95
30+
$71.09
40+
$70.23
50+
$69.38
75+
$68.52
100+
$64.24
200+
$63.38
250+
$62.53
500+
$61.67
1000+
$59.96
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- TUJ
Technical
Technical
| d | 40mm |
|---|---|
| A | 49mm |
| A1 | 16mm |
| A2 | 33mm |
| B | 49.2mm |
| D1 | 29mm |
| H | 115mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 145mm |
| L1 | 88mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 50mm |
| N1 | 19mm |
| s1 | 30.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2.35 kg |
