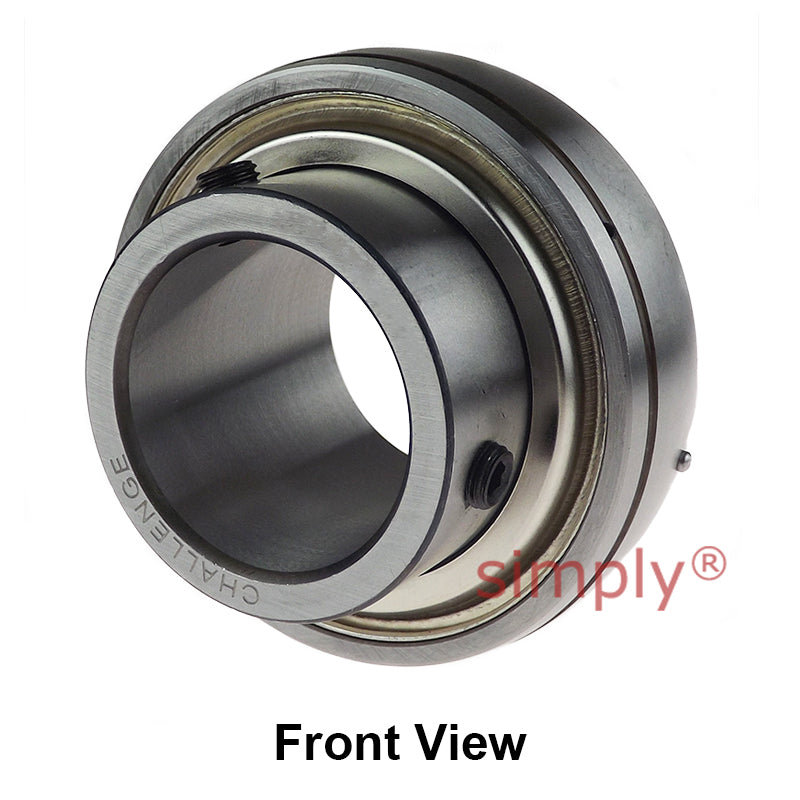

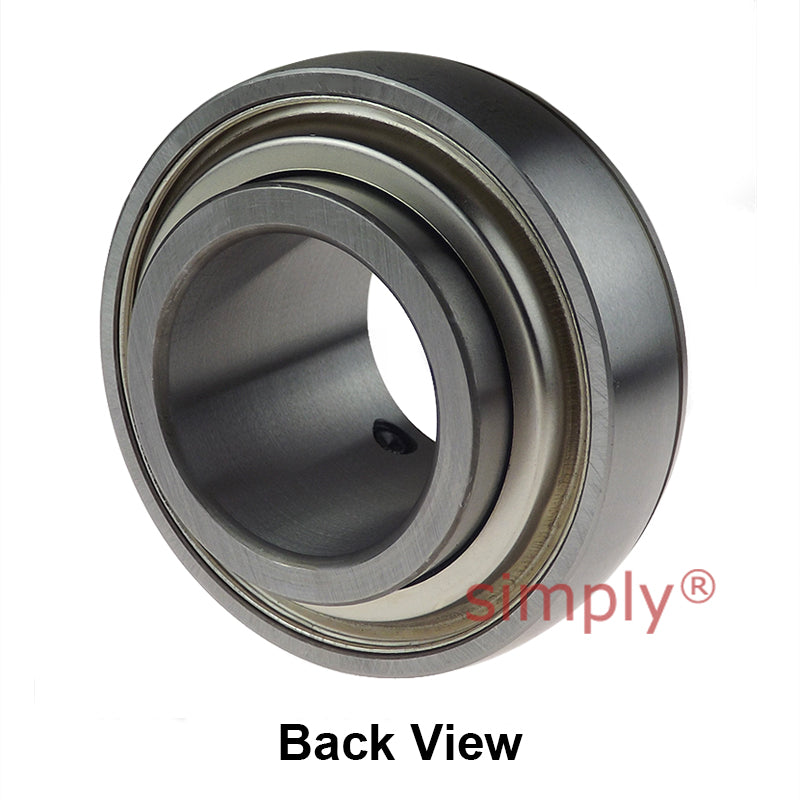

• Challenge UC204 Metric Insert with Grub Screws with 20mm Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC204 Metric Insert with Grub Screws with 20mm Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.204.TS.CHAL

Challenge UC204 Metric Insert with Grub Screws with 20mm Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC204 Metric Insert with Grub Screws with 20mm Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$15.86 ex VAT
$15.86 ex VAT
Sale Sold out

Equivalent to: UC.204

In stock

Price Break
3+ $10.63
5+ $10.03
9+ $9.91
19+ $9.79
49+ $9.67
74+ $9.55
99+ $8.96
199+ $8.84
249+ $8.72
499+ $8.60
999+ $8.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
20mm
Style:
UC
Technical
Shaft Diameter d 20mm
Outside Diameter D 47mm
Overall Width Bi 31mm
Inner Race Width Be 17mm
Back of Bearing to Centre Line n 12.7mm
Front of Bearing to Centre Line m 18.3mm
Dimension G 5mm
Grub Screws x 2 M6x0.75mm
Load Rating (Dynamic) 1000kg
Load Rating (Static) 630kg
Max Speed 4000 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
