SKU: UC.206-20.TS.CHAL

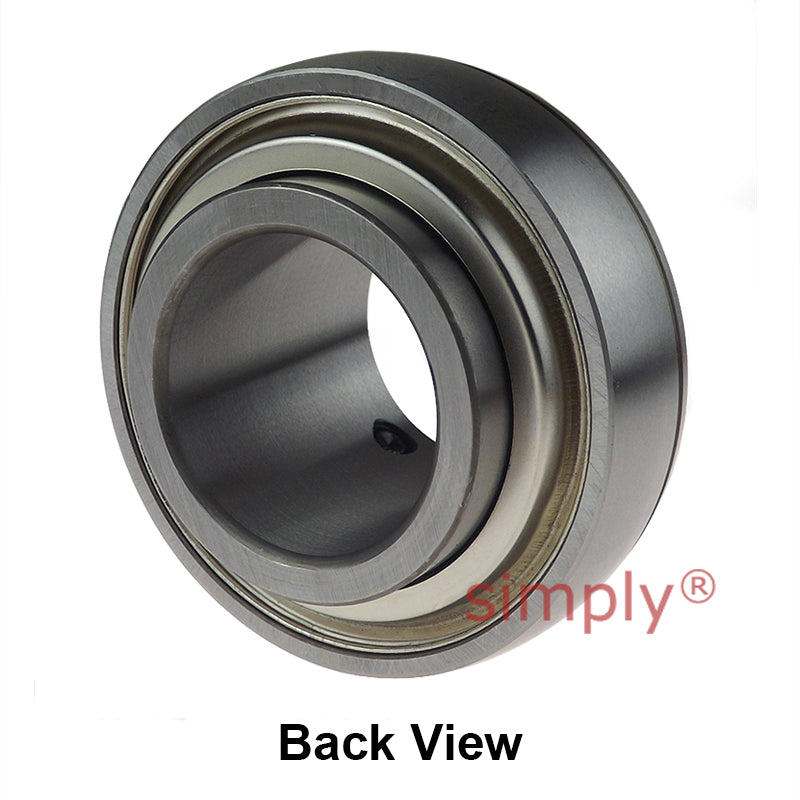

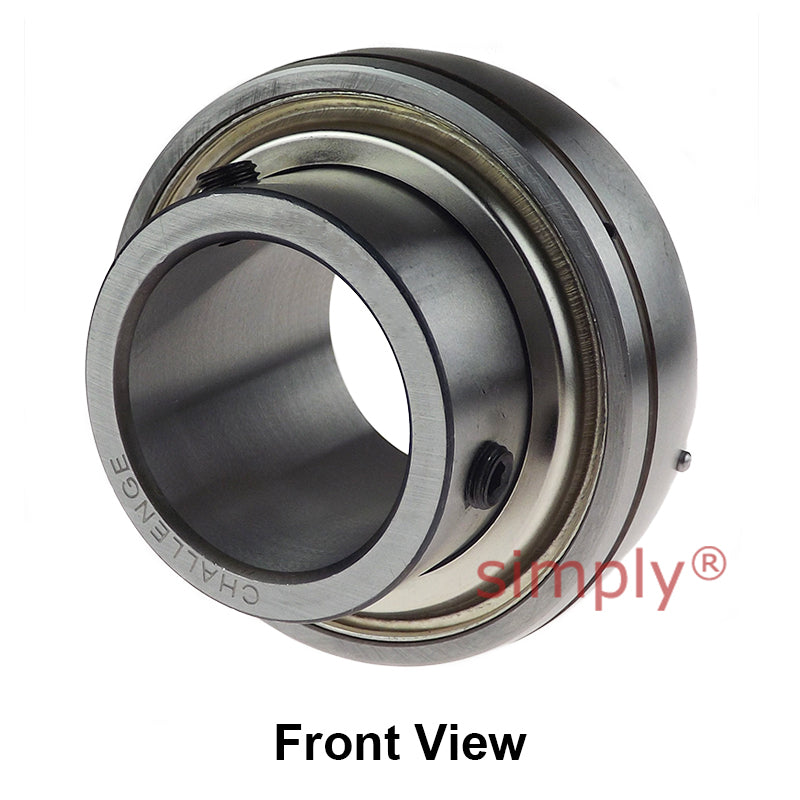

Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC206-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$22.26
ex VAT
Regular price
Sale price
$22.26
ex VAT
Equivalent to: UC.206-20
In stock
Price Break
3+
$14.91
5+
$14.07
9+
$13.90
19+
$13.73
49+
$13.57
74+
$13.40
99+
$12.56
199+
$12.39
249+
$12.23
499+
$12.06
999+
$11.72
Quantity
Couldn't load pickup availability
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UC
Technical
Technical

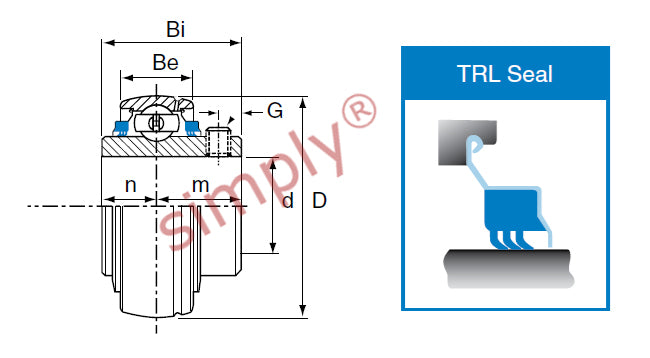

| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Outside Diameter D | 62mm |
| Overall Width Bi | 38.1mm |
| Inner Race Width Be | 19mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Front of Bearing to Centre Line m | 22.2mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 2800 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
