SKU: UC.207

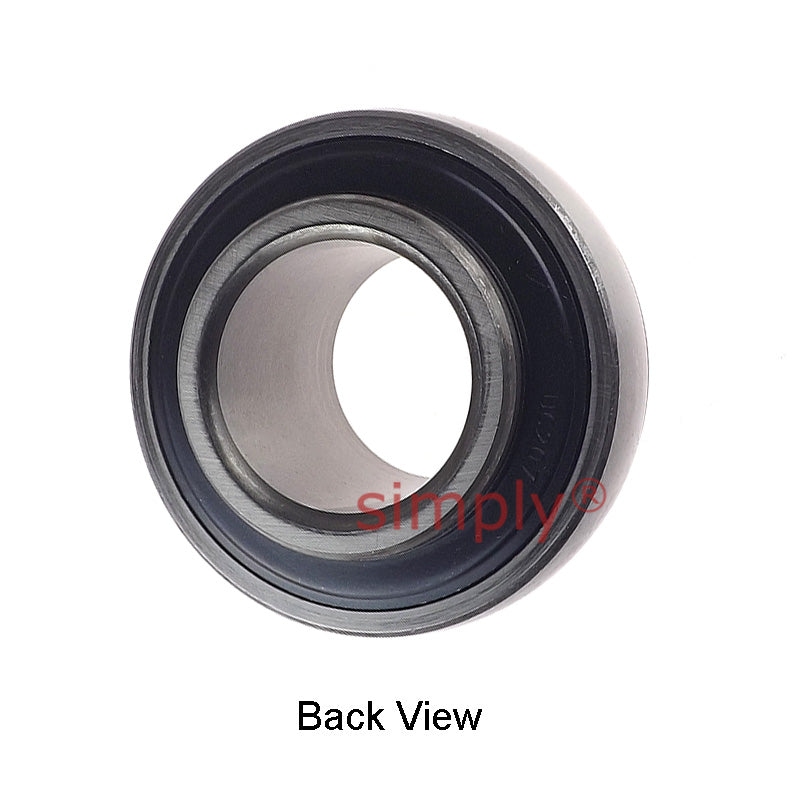

UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
$12.30
ex VAT
Regular price
Sale price
$12.30
ex VAT
Equivalent to: 1035-35G
In stock
Price Break
3+
$8.24
4+
$7.78
9+
$7.69
19+
$7.59
49+
$7.50
99+
$7.41
499+
$6.95
999+
$6.85
1999+
$6.76
2999+
$6.67
4999+
$6.48
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | M8x1.0 |
| Weight | 0.48 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
