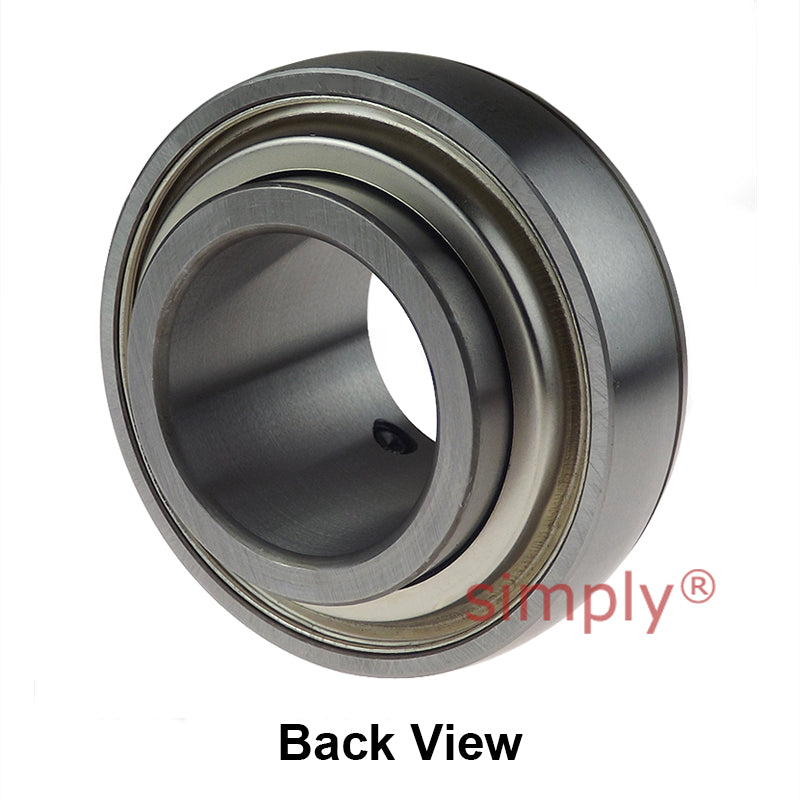

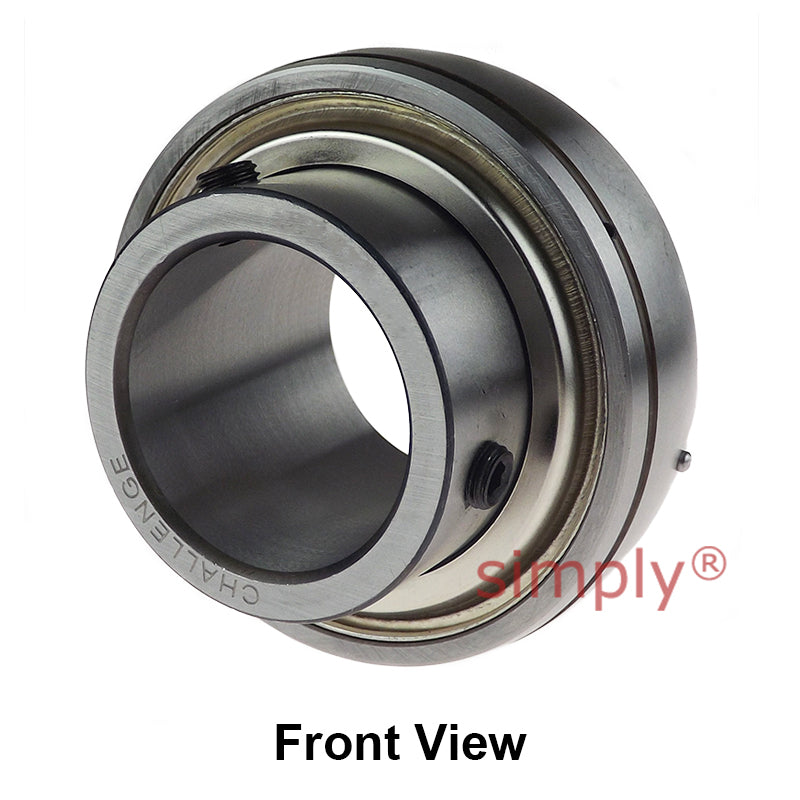

• Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 2

SKU: UC.207-20.TS.CHAL

Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$28.08 ex VAT
$28.08 ex VAT
Sale Sold out

Equivalent to: UC.207-20

In stock

Price Break
3+ $18.81
5+ $17.75
9+ $17.54
19+ $17.33
49+ $17.12
74+ $16.90
99+ $15.85
199+ $15.64
249+ $15.43
499+ $15.21
999+ $14.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UC
Technical
Shaft Diameter d 1-1/4 inch
Outside Diameter D 72mm
Overall Width Bi 42.9mm
Inner Race Width Be 20mm
Back of Bearing to Centre Line n 17.5mm
Front of Bearing to Centre Line m 25.4mm
Dimension G 7mm
Grub Screws x 2 5/16 - 24UNF inch
Load Rating (Dynamic) 2010kg
Load Rating (Static) 1390kg
Max Speed 2400 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
