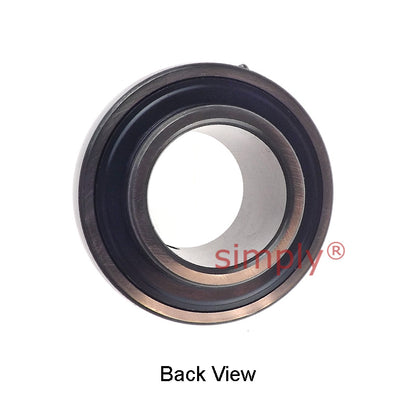

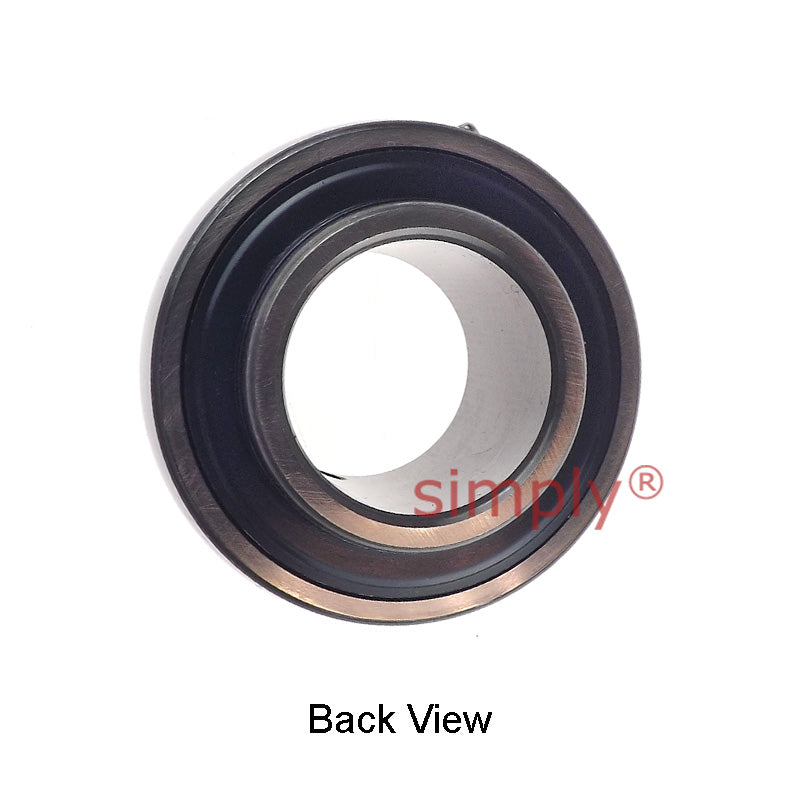

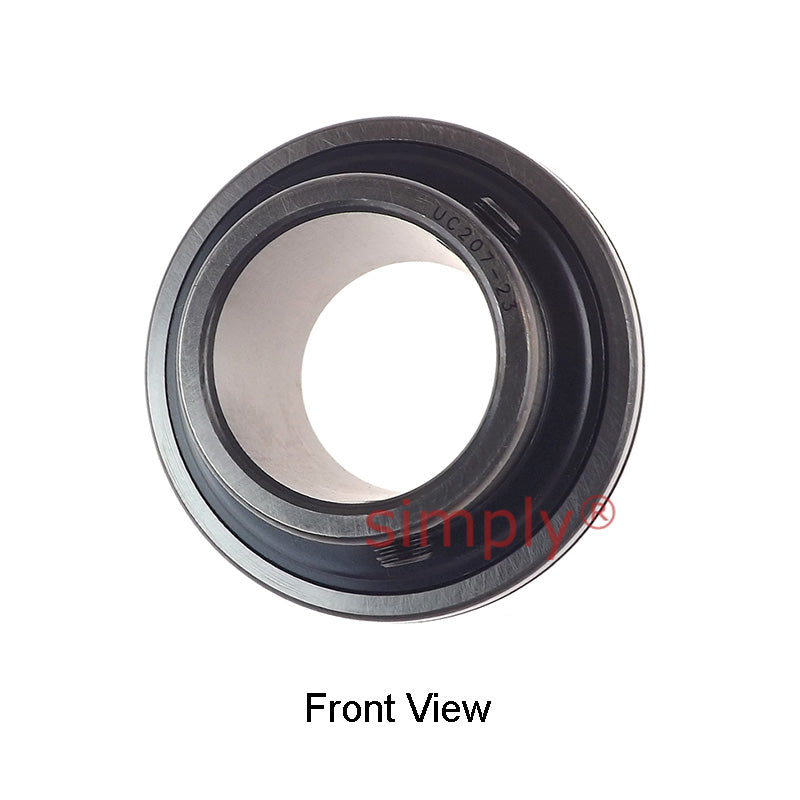

UC207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia

UC207-23 Imperial Bearing Insert with 1-7/16 inch Bore 72mm Outside Dia
$13.50 ex VAT
$13.50 ex VAT
Sale Sold out

Equivalent to: 1035-1-7/16G

In stock

Price Break
3+ $9.04
4+ $8.53
9+ $8.43
19+ $8.33
49+ $8.23
99+ $8.13
499+ $7.62
999+ $7.52
1999+ $7.42
2999+ $7.31
4999+ $7.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Outside Diameter:
72mm
Style:
UC
Technical
d 1-7/16 inch
D 72mm
Bi 42.9mm
Be 20mm
n 17.5mm
m 25.4mm
G 6.5mm
Grub screw 5/16"-24 UNF
Weight 0.45 kg
Dynamic load 2010 kgf
Static load 1390 kgf
Rec max speed 4500 rpm
