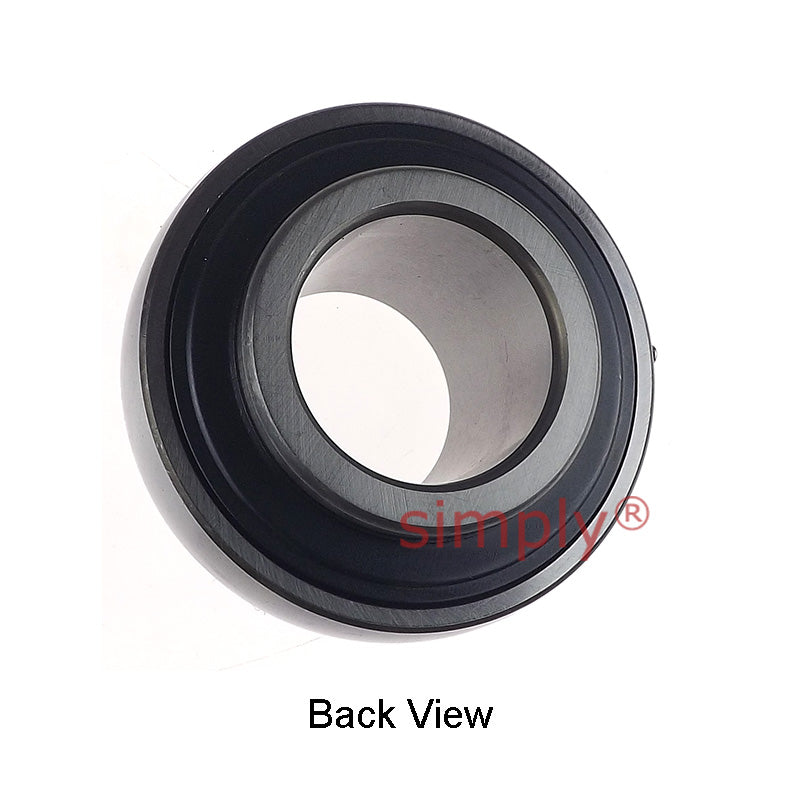

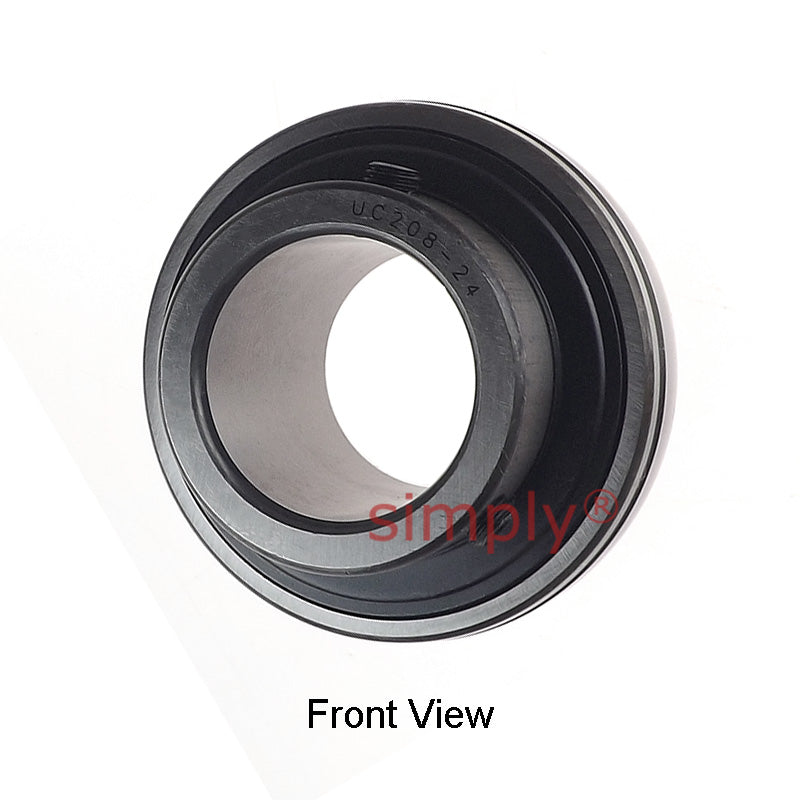

• UC208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
  • UC208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
1 2

SKU: UC.208-24

UC208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia

UC208-24 Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
$14.75 ex VAT
$14.75 ex VAT
Sale Sold out

Equivalent to: 1040-1-1/2G

In stock

Price Break
3+ $9.88
4+ $9.32
9+ $9.21
19+ $9.10
49+ $8.99
99+ $8.88
499+ $8.32
999+ $8.21
1999+ $8.10
2999+ $7.99
4999+ $7.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
80mm
Style:
UC
Technical
d 1-1/2 inch
D 80mm
Bi 49.2mm
Be 21mm
n 19mm
m 30.2mm
G 8mm
Grub screw 5/16"-24 UNF
Weight 0.68 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
