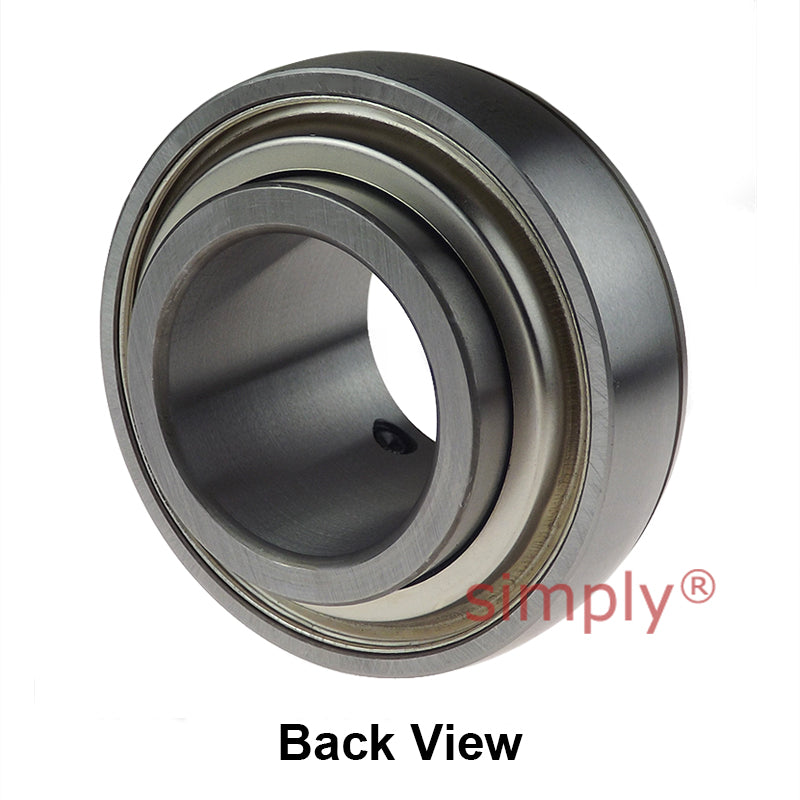

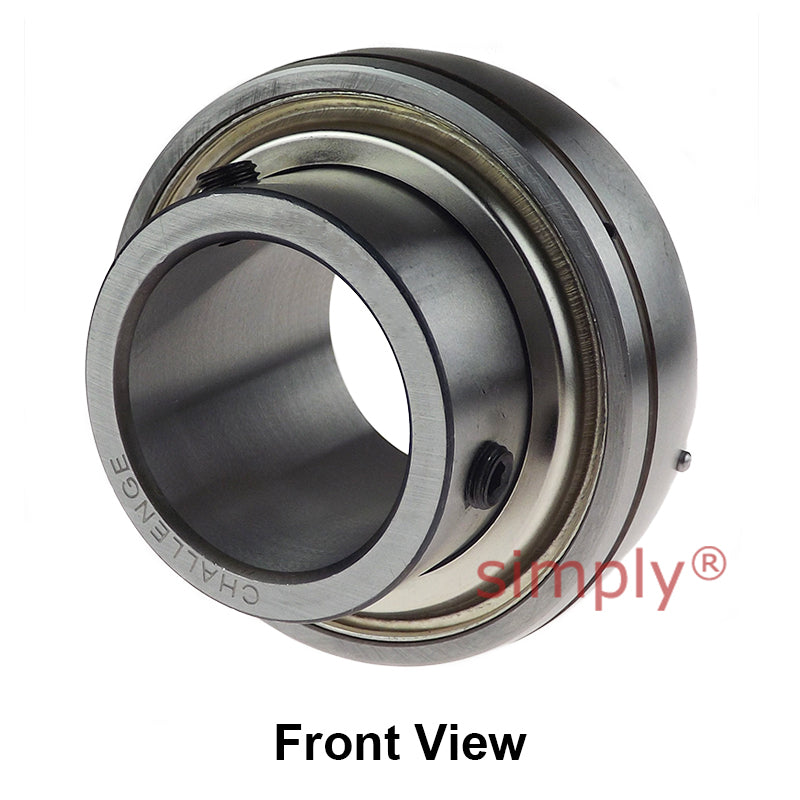

• Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.208-24.TS.CHAL

Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC208-24 Imperial Insert with Grub Screws with 1-1/2 inch Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$33.03 ex VAT
$33.03 ex VAT
Sale Sold out

Equivalent to: UC.208-24

In stock

Price Break
3+ $22.12
5+ $20.88
9+ $20.63
19+ $20.38
49+ $20.14
74+ $19.89
99+ $18.64
199+ $18.40
249+ $18.15
499+ $17.90
999+ $17.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UC
Technical
Shaft Diameter d 1-1/2 inch
Outside Diameter D 80mm
Overall Width Bi 49.2mm
Inner Race Width Be 21mm
Back of Bearing to Centre Line n 19mm
Front of Bearing to Centre Line m 30.2mm
Dimension G 8mm
Grub Screws x 2 5/16 - 24UNF inch
Load Rating (Dynamic) 2560kg
Load Rating (Static) 1810kg
Max Speed 2200 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
