SKU: UC.209

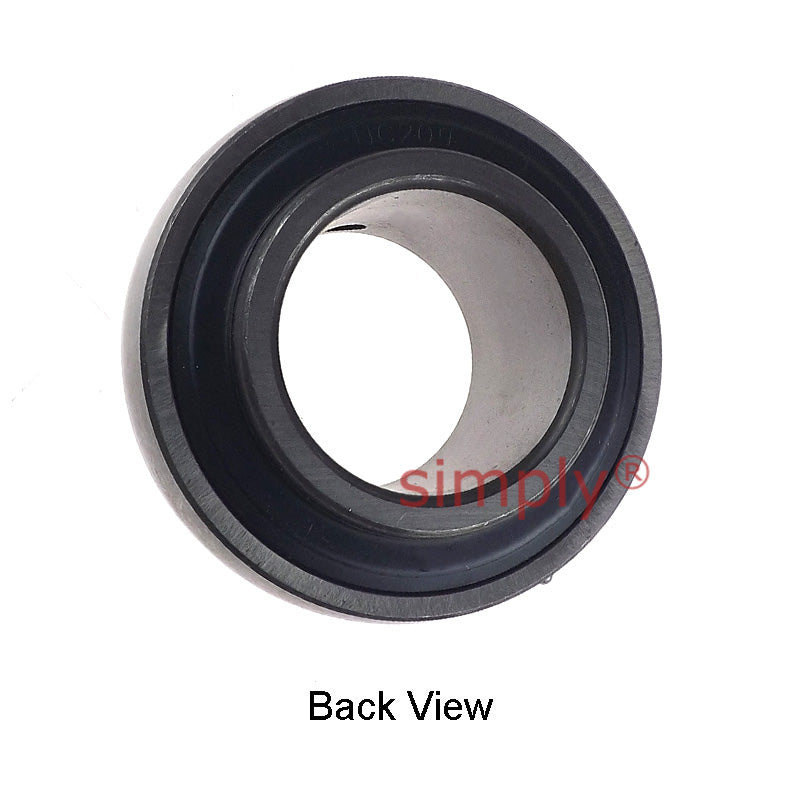

UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
$17.47
ex VAT
Regular price
Sale price
$17.47
ex VAT
Equivalent to: 1045-45G
In stock
Price Break
3+
$11.70
4+
$11.04
9+
$10.91
19+
$10.78
49+
$10.65
99+
$10.52
499+
$9.86
999+
$9.73
1999+
$9.60
2999+
$9.47
4999+
$9.20
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- UC
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | M8x1.0 |
| Weight | 0.68 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
