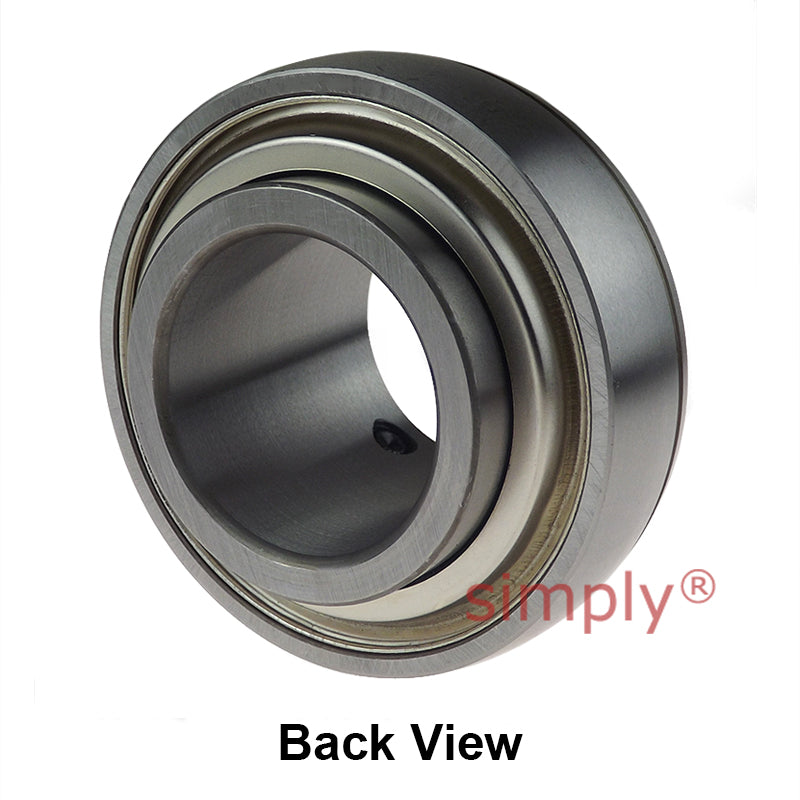

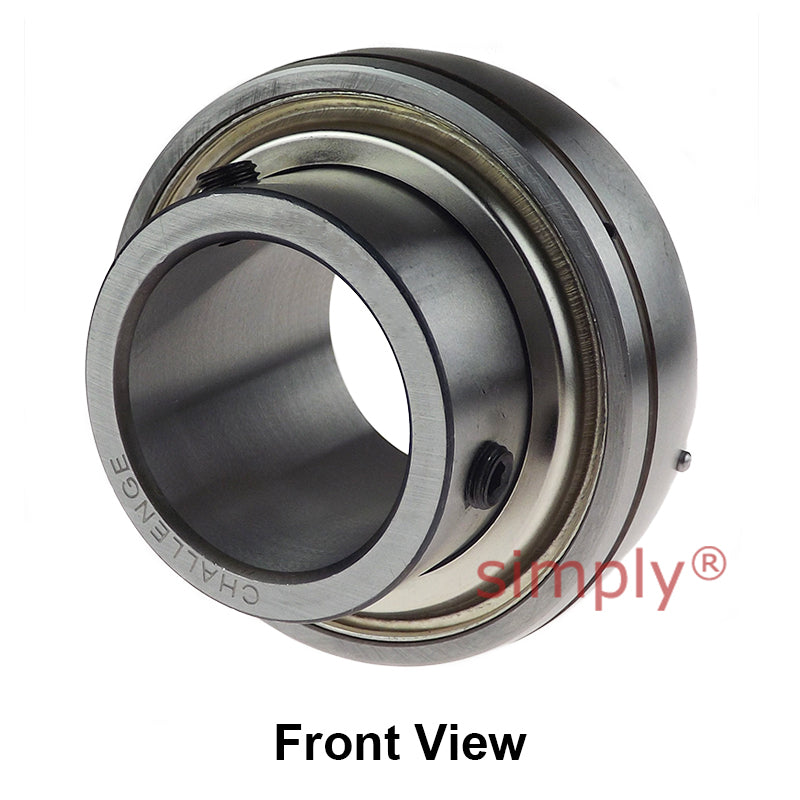

• Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.209-28.TS.CHAL

Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC209-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 85mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$39.29 ex VAT
$39.29 ex VAT
Sale Sold out

Equivalent to: UC.209-28

In stock

Price Break
3+ $26.32
5+ $24.84
9+ $24.55
19+ $24.25
49+ $23.95
74+ $23.66
99+ $22.18
199+ $21.88
249+ $21.59
499+ $21.29
999+ $20.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
UC
Technical
Shaft Diameter d 1-3/4 inch
Outside Diameter D 85mm
Overall Width Bi 49.2mm
Inner Race Width Be 22mm
Back of Bearing to Centre Line n 19mm
Front of Bearing to Centre Line m 30.2mm
Dimension G 8mm
Grub Screws x 2 5/16 - 24UNF inch
Load Rating (Dynamic) 2560kg
Load Rating (Static) 1810kg
Max Speed 1900 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
