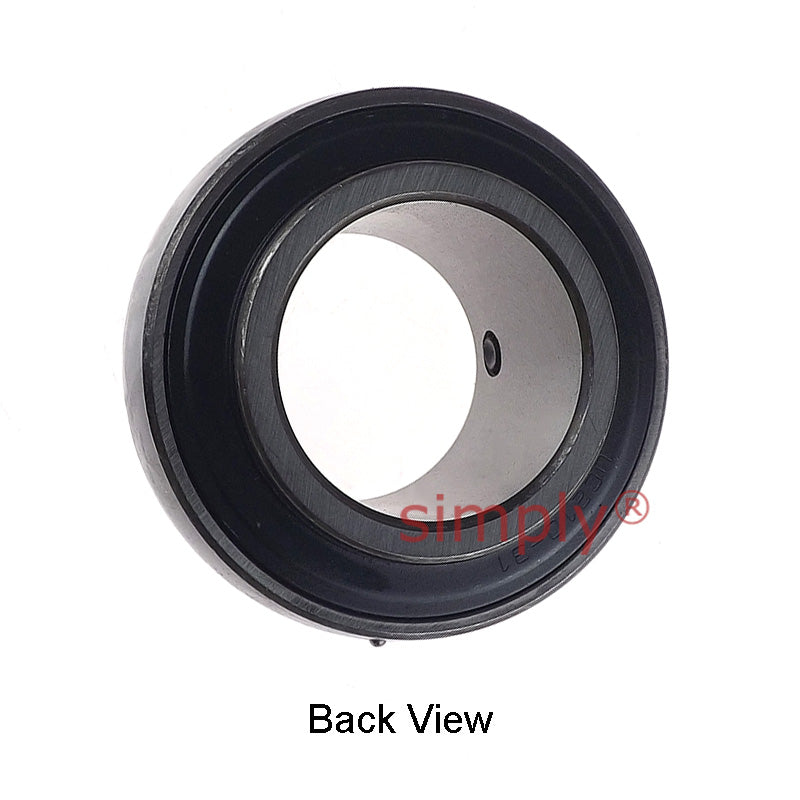

• UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
  • UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
1 2

SKU: UC.210-31

UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia

UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
$21.71 ex VAT
$21.71 ex VAT
Sale Sold out

Equivalent to: 1050-1-15/16G

In stock

Price Break
3+ $14.54
4+ $13.73
9+ $13.56
19+ $13.40
49+ $13.24
99+ $13.07
499+ $12.26
999+ $12.09
1999+ $11.93
2999+ $11.77
4999+ $11.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
90mm
Style:
UC
Technical
d 1-15/16 inch
D 90mm
Bi 51.6mm
Be 24mm
n 19mm
m 32.6mm
G 10mm
Grub screw 3/8"-24 UNF
Weight 0.82 kg
Dynamic load 2750 kgf
Static load 2020 kgf
Rec max speed 3400 rpm
