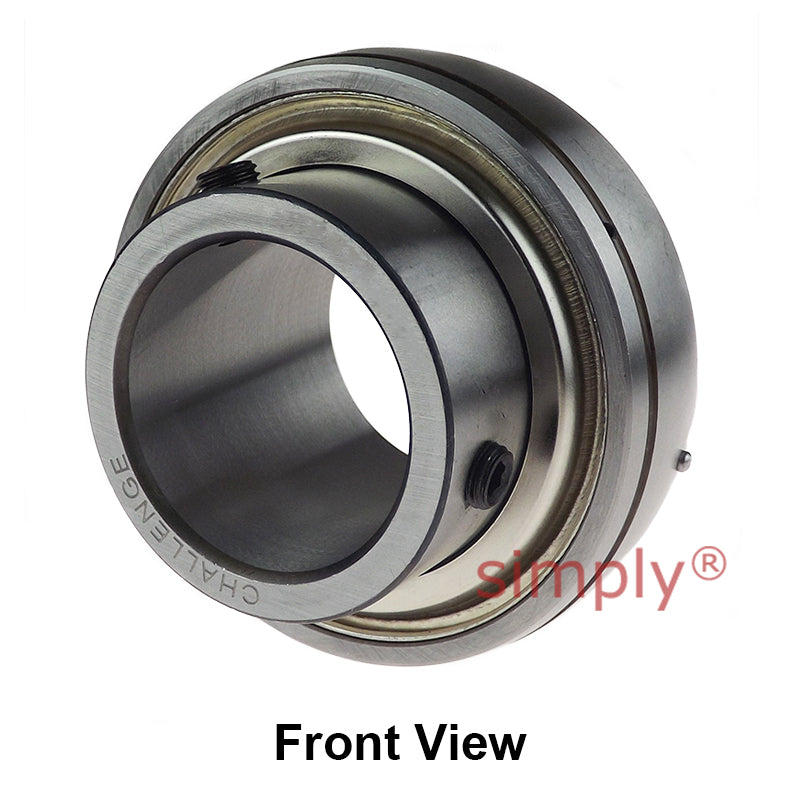

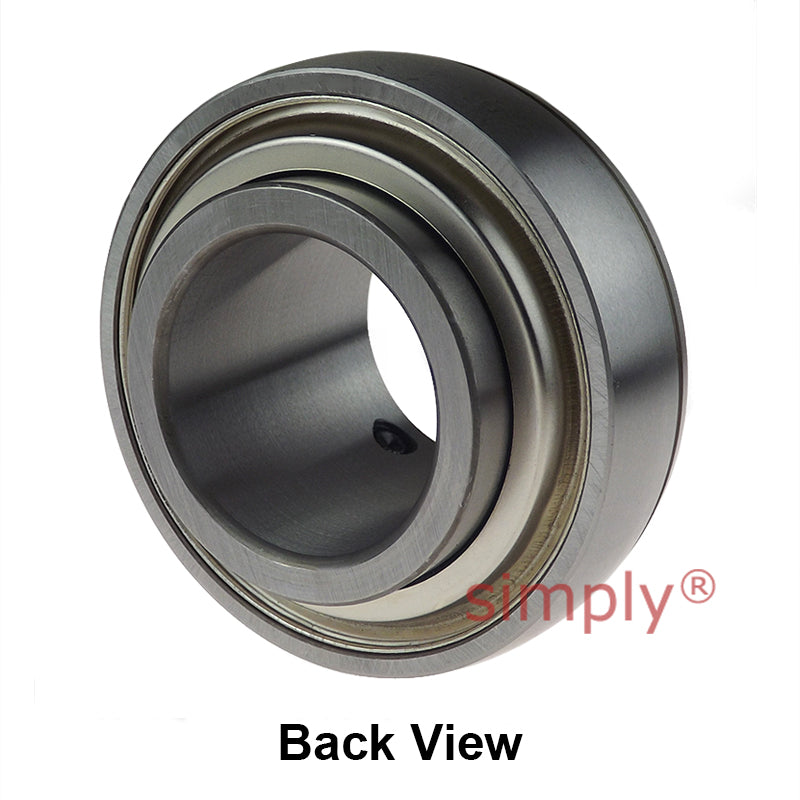

• Challenge UC211-34 Imperial Insert with Grub Screws with 2-1/8 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC211-34 Imperial Insert with Grub Screws with 2-1/8 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.211-34.TS.CHAL

Challenge UC211-34 Imperial Insert with Grub Screws with 2-1/8 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC211-34 Imperial Insert with Grub Screws with 2-1/8 inch Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$76.84 ex VAT
$76.84 ex VAT
Sale Sold out

Equivalent to: UC.211-34

In stock

Price Break
3+ $51.47
5+ $48.58
9+ $48.00
19+ $47.42
49+ $46.84
74+ $46.26
99+ $43.37
199+ $42.79
249+ $42.22
499+ $41.64
999+ $40.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing

Brand / Quality:
Challenge - Good Quality
Inside Diameter:
53.98mm = 2.125 (2-1/8) inch
Style:
UC
Technical
Shaft Diameter d 2-1/8 inch
Outside Diameter D 100mm
Overall Width Bi 55.6mm
Inner Race Width Be 25mm
Back of Bearing to Centre Line n 22.2mm
Front of Bearing to Centre Line m 33.4mm
Dimension G 10mm
Grub Screws x 2 3/8 - 24UNF inch
Load Rating (Dynamic) 2750kg
Load Rating (Static) 2020kg
Max Speed 1800 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
