• Challenge UC211 Metric Insert with Grub Screws with 55mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC211 Metric Insert with Grub Screws with 55mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.211.TS.CHAL

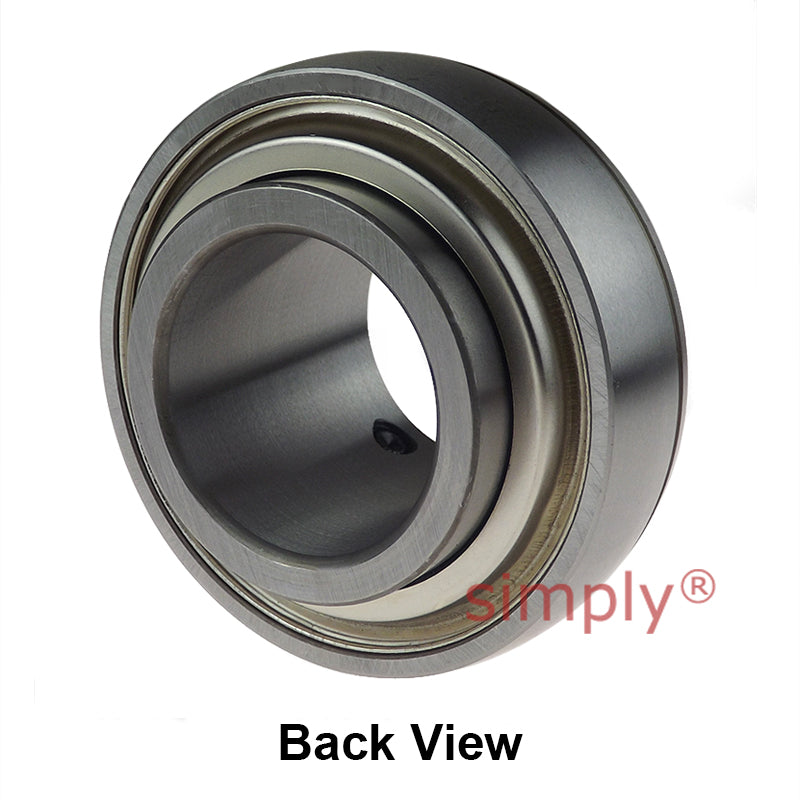

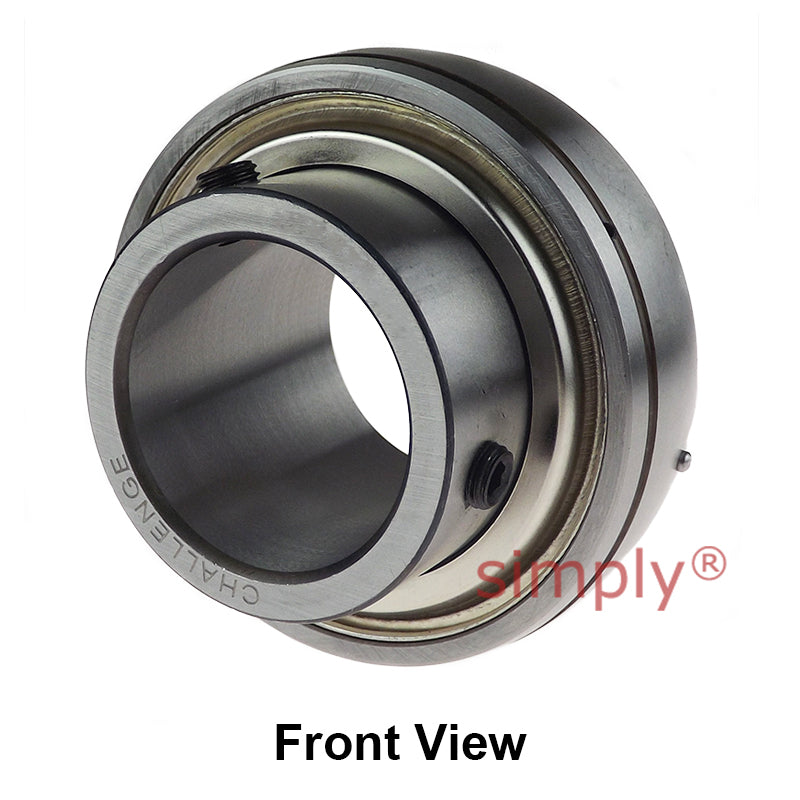

Challenge UC211 Metric Insert with Grub Screws with 55mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC211 Metric Insert with Grub Screws with 55mm Bore 100mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$70.18 ex VAT
$70.18 ex VAT
Sale Sold out

Equivalent to: UC.211

In stock

Price Break
3+ $47.01
5+ $44.37
9+ $43.84
19+ $43.31
49+ $42.78
74+ $42.25
99+ $39.61
199+ $39.09
249+ $38.56
499+ $38.03
999+ $36.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
55mm
Style:
UC
Technical
Shaft Diameter d 55mm
Outside Diameter D 100mm
Overall Width Bi 55.6mm
Inner Race Width Be 25mm
Back of Bearing to Centre Line n 22.2mm
Front of Bearing to Centre Line m 33.4mm
Dimension G 10mm
Grub Screws x 2 M10X1.25mm
Load Rating (Dynamic) 3400kg
Load Rating (Static) 2550kg
Max Speed 1600 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
