SKU: UC.212

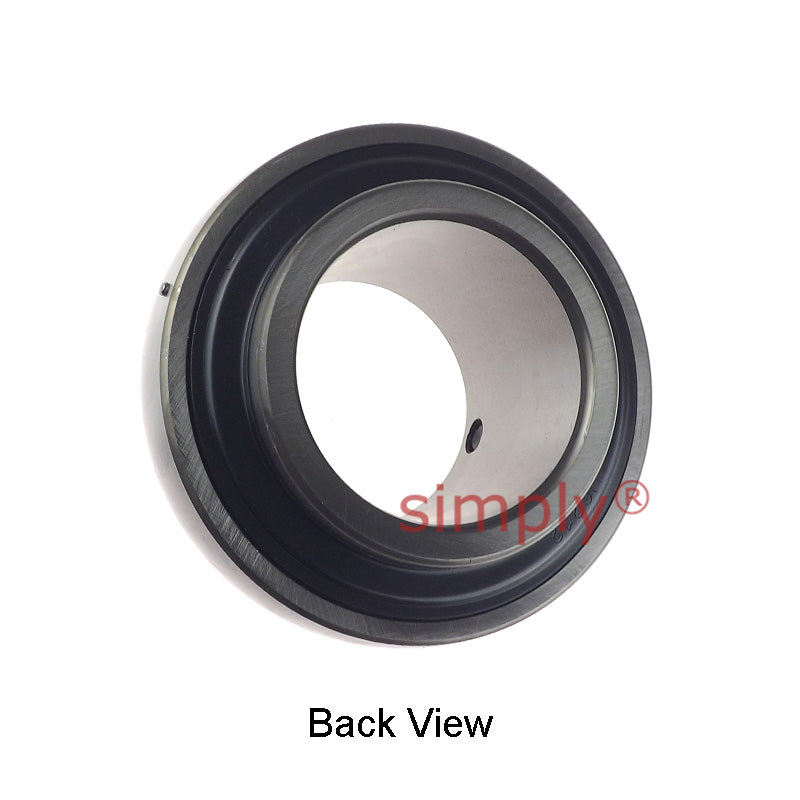

UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
$40.46
ex VAT
Regular price
Sale price
$40.46
ex VAT
Equivalent to: 1060-60G
In stock
Price Break
3+
$27.10
4+
$25.58
9+
$25.27
19+
$24.97
49+
$24.66
99+
$24.36
499+
$22.84
999+
$22.53
1999+
$22.23
2999+
$21.92
4999+
$21.31
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.45 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
