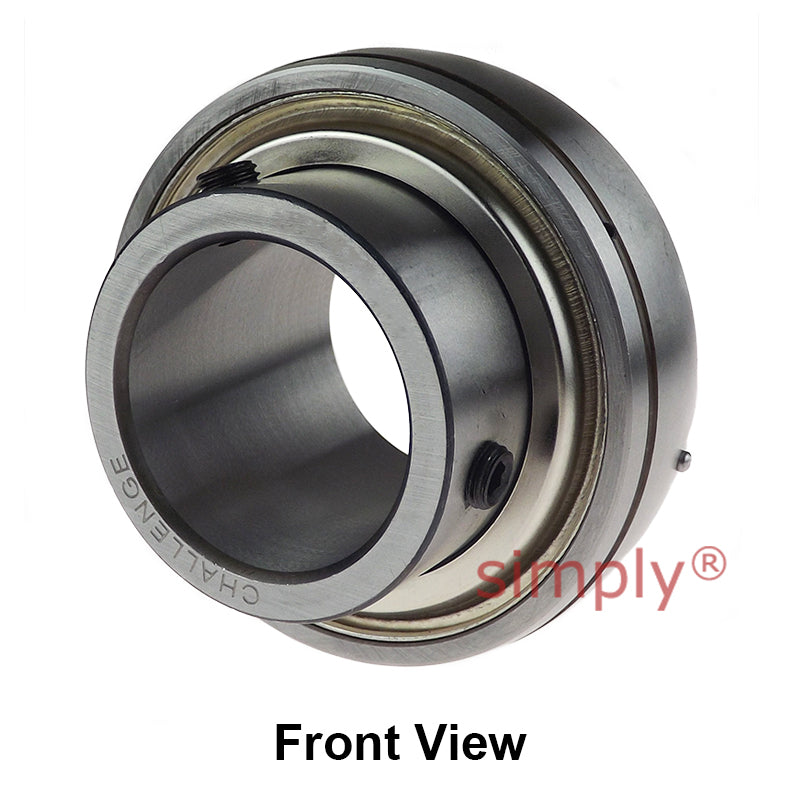

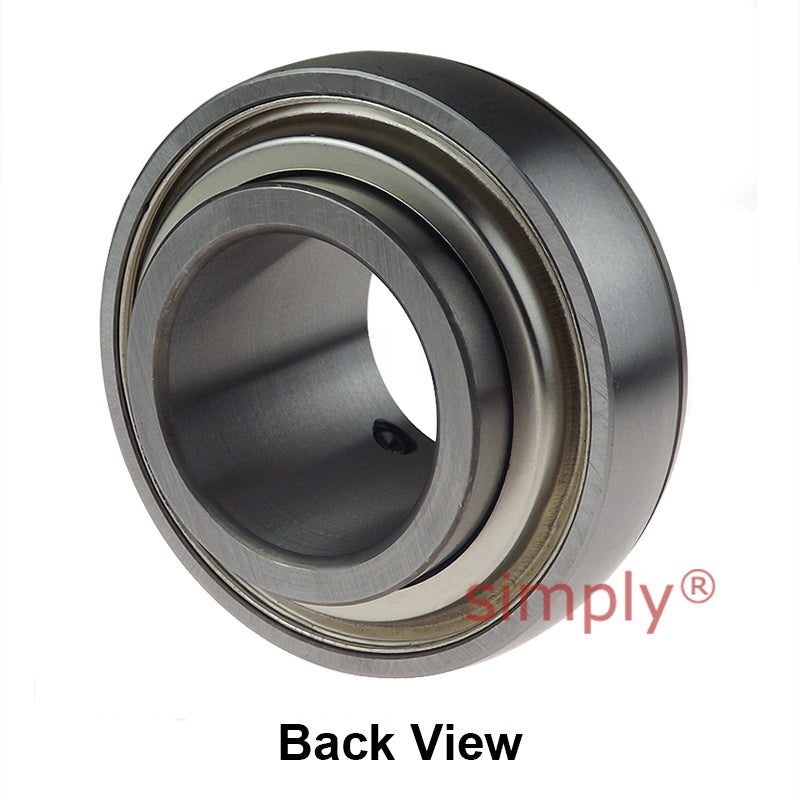

• Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.212-36.TS.CHAL

Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$109.21 ex VAT
$109.21 ex VAT
Sale Sold out

Equivalent to: UC.212-36

In stock

Price Break
3+ $73.15
5+ $69.04
9+ $68.22
19+ $67.39
49+ $66.57
74+ $65.75
99+ $61.64
199+ $60.82
249+ $60.00
499+ $59.18
999+ $57.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Style:
UC
Technical
Shaft Diameter d 2-1/4 inch
Outside Diameter D 110mm
Overall Width Bi 65.1mm
Inner Race Width Be 27mm
Back of Bearing to Centre Line n 25.4mm
Front of Bearing to Centre Line m 39.7mm
Dimension G 10mm
Grub Screws x 2 3/8 - 24UNF inch
Load Rating (Dynamic) 4100kg
Load Rating (Static) 3150kg
Max Speed 1500 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
