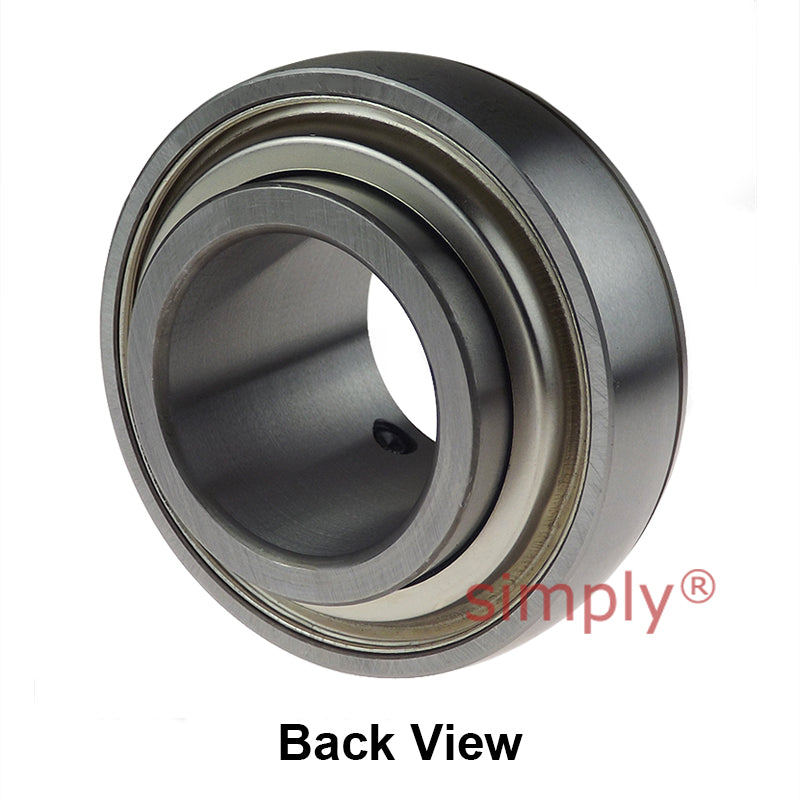

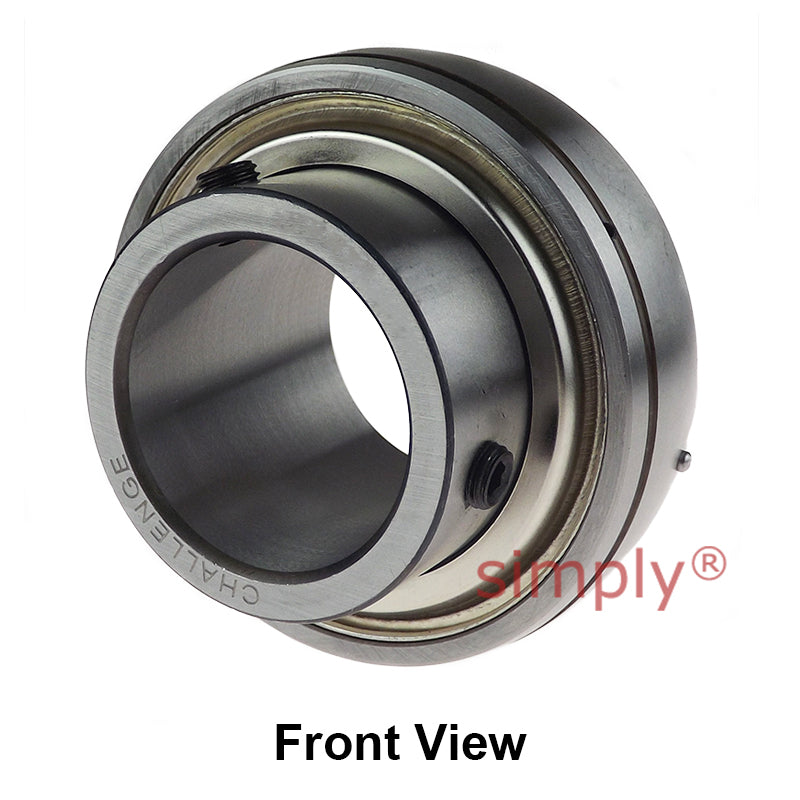

• Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.213-40.TS.CHAL

Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC213-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$117.11 ex VAT
$117.11 ex VAT
Sale Sold out

Equivalent to: UC.213-40

In stock

Price Break
3+ $78.44
5+ $74.03
9+ $73.15
19+ $72.27
49+ $71.39
74+ $70.51
99+ $66.10
199+ $65.22
249+ $64.34
499+ $63.46
999+ $61.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
63.5mm = 2.5 (2-1/2) inch
Style:
UC
Technical
Shaft Diameter d 2-1/2 inch
Outside Diameter D 120mm
Overall Width Bi 65.1mm
Inner Race Width Be 30mm
Back of Bearing to Centre Line n 25.4mm
Front of Bearing to Centre Line m 39.7mm
Dimension G 10mm
Grub Screws x 2 3/8 - 24UNF inch
Load Rating (Dynamic) 4480kg
Load Rating (Static) 3470kg
Max Speed 1400 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
