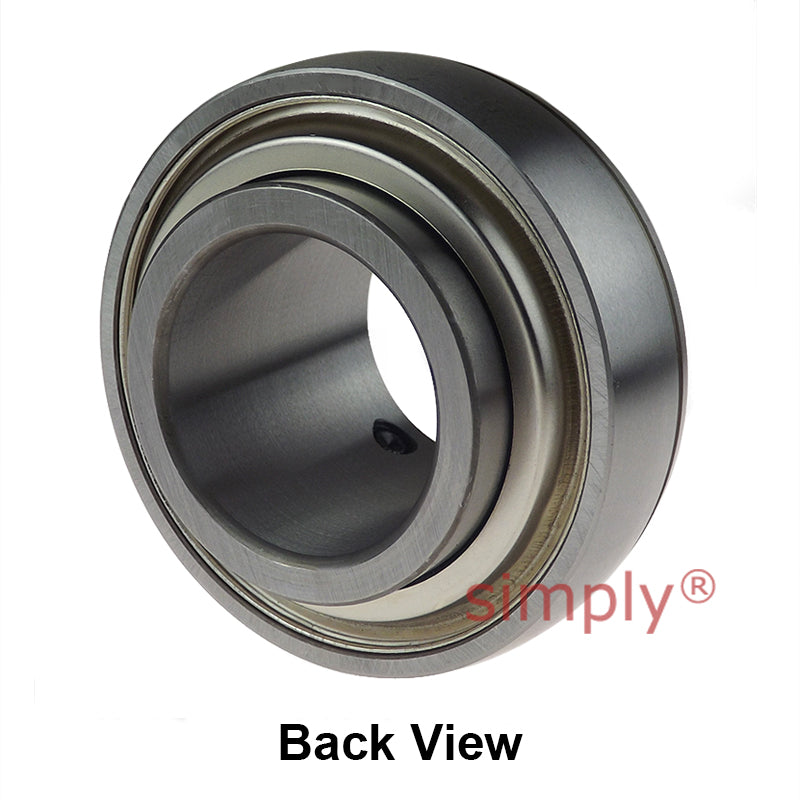

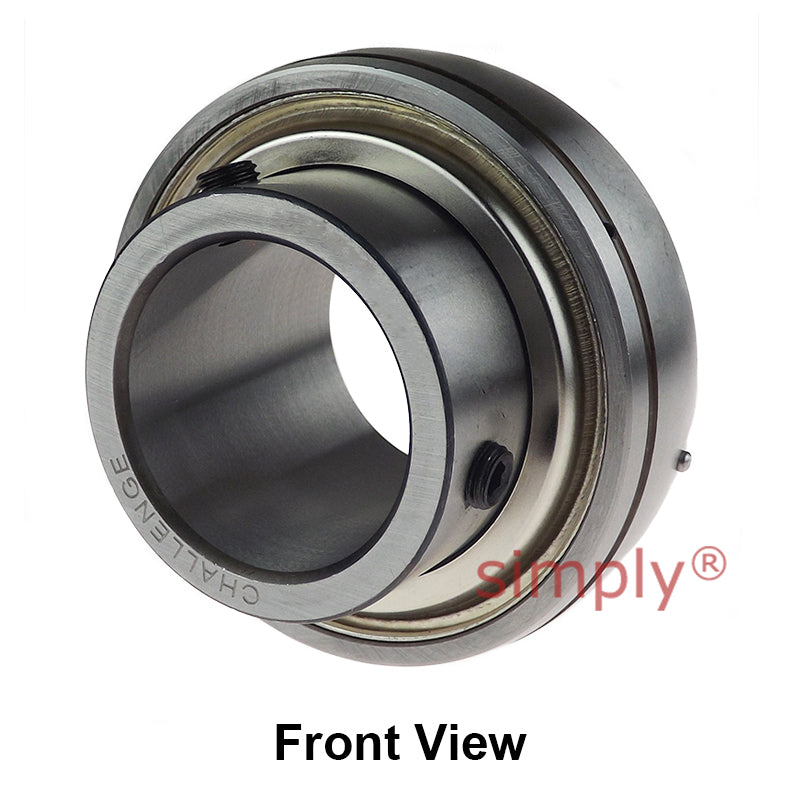

• Challenge UC214 Metric Insert with Grub Screws with 70mm Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge UC214 Metric Insert with Grub Screws with 70mm Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
  • Challenge
1 3

SKU: UC.214.TS.CHAL

Challenge UC214 Metric Insert with Grub Screws with 70mm Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge UC214 Metric Insert with Grub Screws with 70mm Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$127.48 ex VAT
$127.48 ex VAT
Sale Sold out

Equivalent to: UC.214

In stock

Price Break
3+ $85.38
5+ $80.59
9+ $79.63
19+ $78.67
49+ $77.71
74+ $76.75
99+ $71.95
199+ $70.99
249+ $70.03
499+ $69.08
999+ $67.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge - Good Quality
Inside Diameter:
70mm
Style:
UC
Technical
Shaft Diameter d 70mm
Outside Diameter D 125mm
Overall Width Bi 74.6mm
Inner Race Width Be 30mm
Back of Bearing to Centre Line n 30.2mm
Front of Bearing to Centre Line m 44.4mm
Dimension G 12mm
Grub Screws x 2 M12x1.50mm
Load Rating (Dynamic) 4870kg
Load Rating (Static) 3810kg
Max Speed 1300 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
