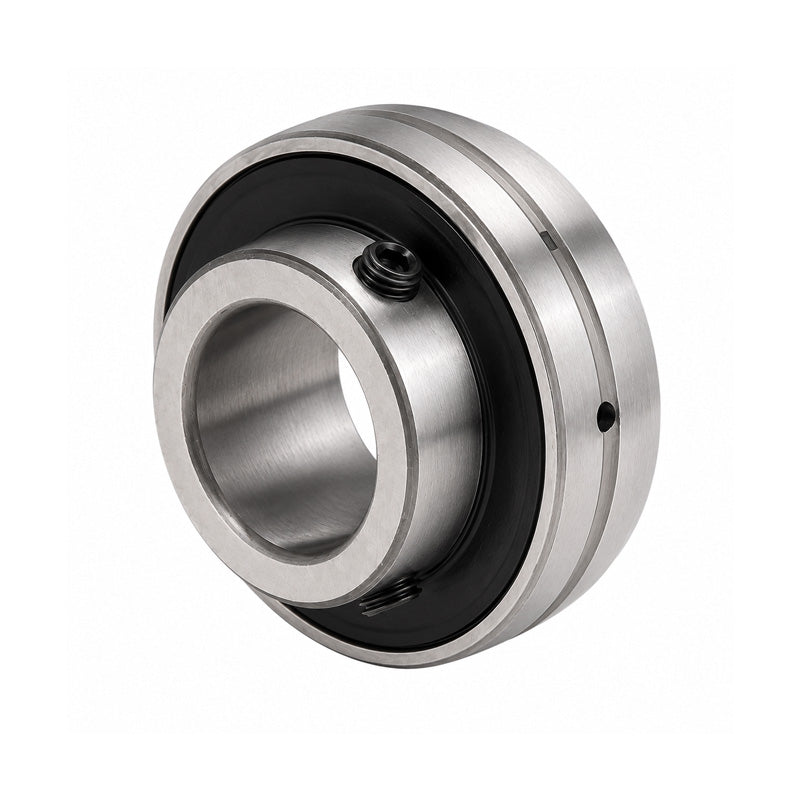

• UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia
1 1

SKU: UC.215-47

UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia

UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia
$95.65 ex VAT
$95.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $64.07
4+ $60.47
9+ $59.75
19+ $59.03
49+ $58.31
99+ $57.59
499+ $53.99
999+ $53.27
1999+ $52.55
2999+ $51.83
4999+ $50.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Outside Diameter:
130mm
Style:
UC
Technical
d 2-15/16 inch
D 130mm
Bi 77.8mm
Be 30mm
n 33.3mm
m 44.5mm
G 12mm
Grub screw 7/16"-20 UNF
Weight 2.21 kg
Dynamic load 5190 kgf
Static load 4190 kgf
