SKU: UC.215-48

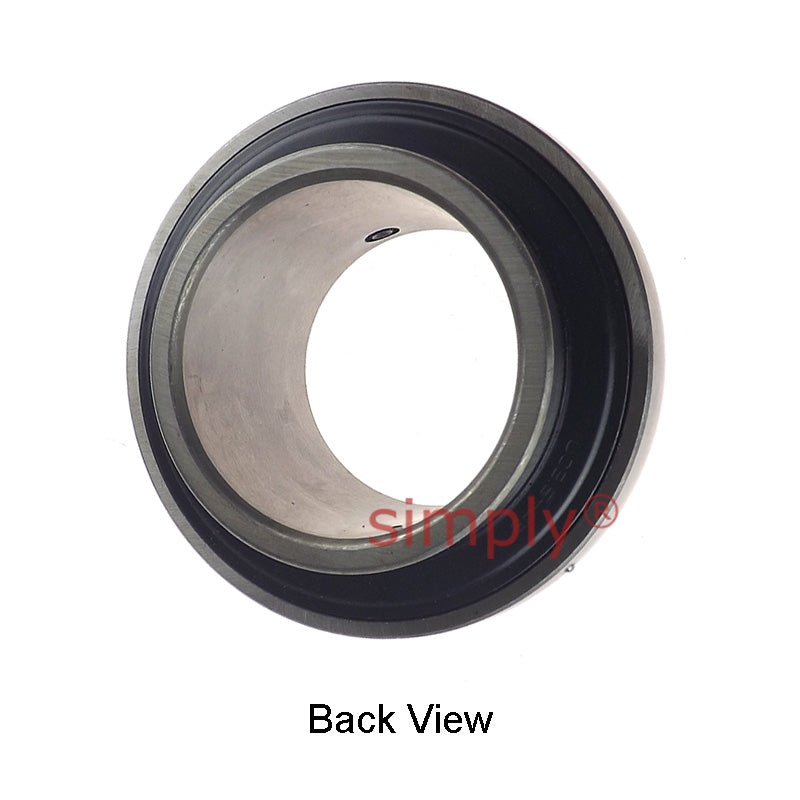

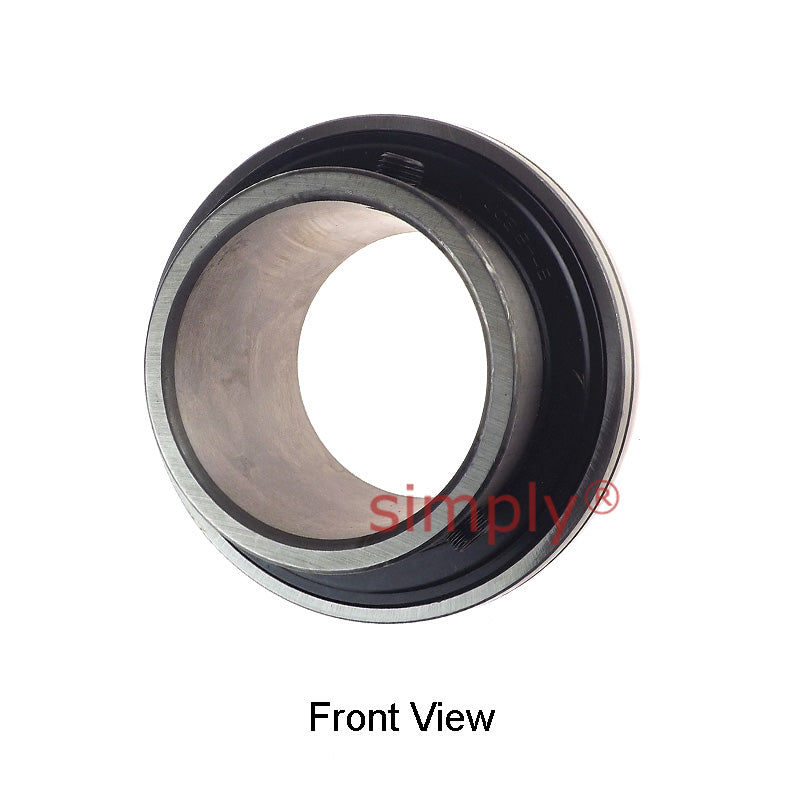

UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
UC215-48 Imperial Bearing Insert with 3 inch Bore 130mm Outside Dia
Regular price
$95.31
ex VAT
Regular price
Sale price
$95.31
ex VAT
In stock
Price Break
3+
$63.84
4+
$60.25
9+
$59.53
19+
$58.82
49+
$58.10
99+
$57.38
499+
$53.79
999+
$53.08
1999+
$52.36
2999+
$51.64
4999+
$50.21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 130mm
- Style:
- UC
Technical
Technical
| d | 3 inch |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| n | 33.3mm |
| m | 44.5mm |
| G | 12mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 2.12 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
