SKU: UC.216

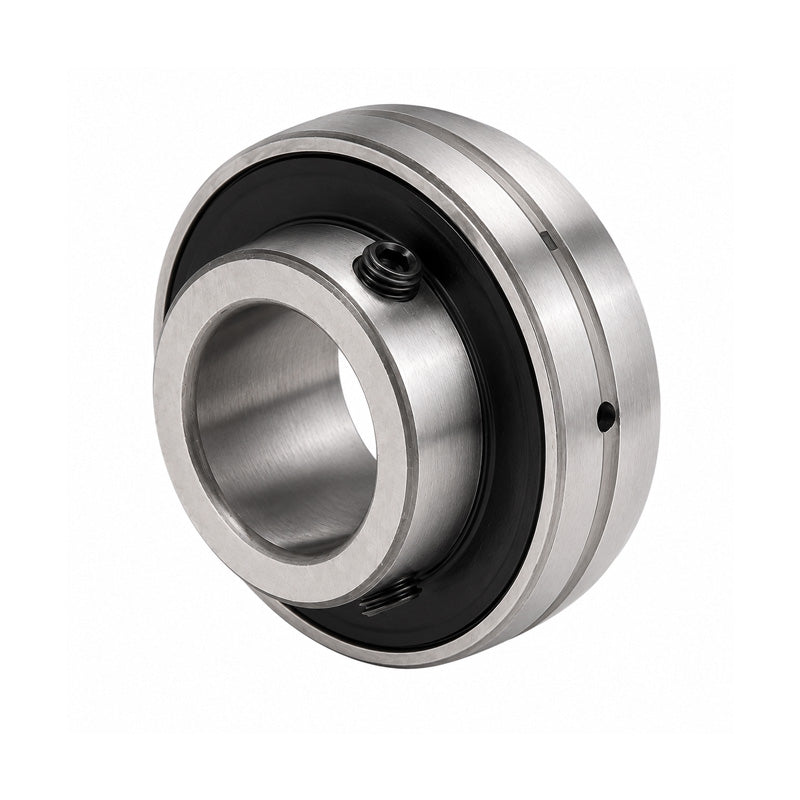

UC216 Metric Bearing Insert with 80mm Bore 140mm Outside Dia
UC216 Metric Bearing Insert with 80mm Bore 140mm Outside Dia
Regular price
$135.23
ex VAT
Regular price
Sale price
$135.23
ex VAT
In stock
Price Break
3+
$90.58
4+
$85.49
9+
$84.47
19+
$83.46
49+
$82.44
99+
$81.42
499+
$76.33
999+
$75.31
1999+
$74.30
2999+
$73.28
4999+
$71.24
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Style:
- UC
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| Bi | 82.6mm |
| Be | 33mm |
| n | 33.3mm |
| m | 49.3mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 2.79 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
