SKU: UC.218

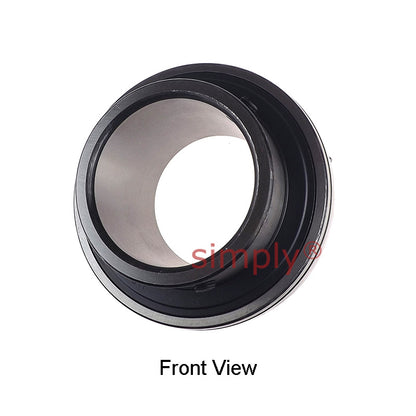

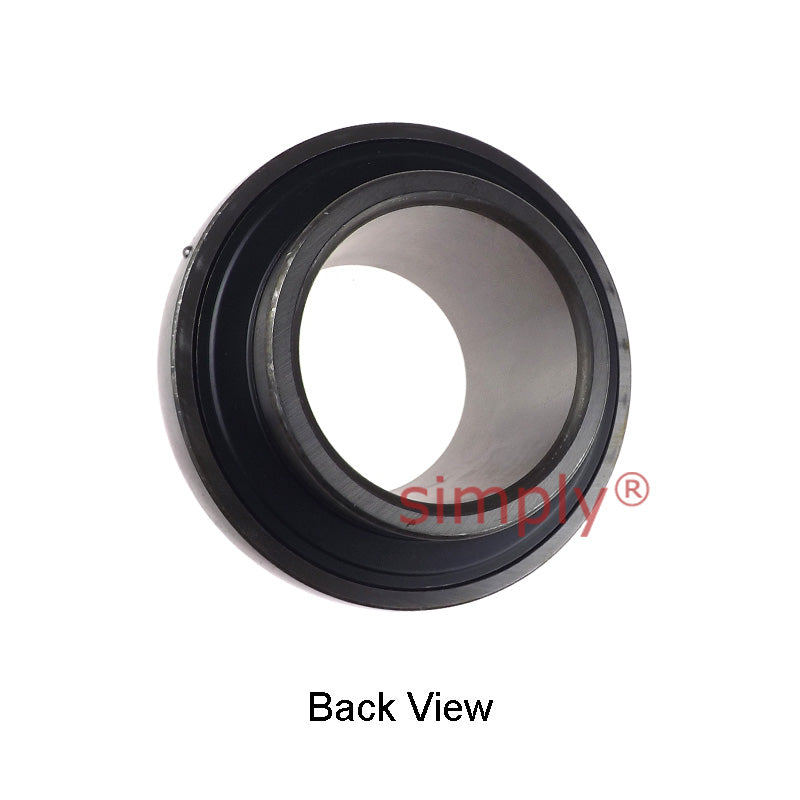

UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
UC218 Metric Bearing Insert with 90mm Bore 160mm Outside Dia
Regular price
$189.88
ex VAT
Regular price
Sale price
$189.88
ex VAT
In stock
Price Break
3+
$127.19
4+
$120.05
9+
$118.62
19+
$117.19
49+
$115.76
99+
$114.33
499+
$107.18
999+
$105.76
1999+
$104.33
2999+
$102.90
4999+
$100.04
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Style:
- UC
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 37mm |
| n | 39.7mm |
| m | 56.3mm |
| G | 14mm |
| Grub screw | M12x1.5 |
| Weight | 4.35 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
