SKU: UC.218-56

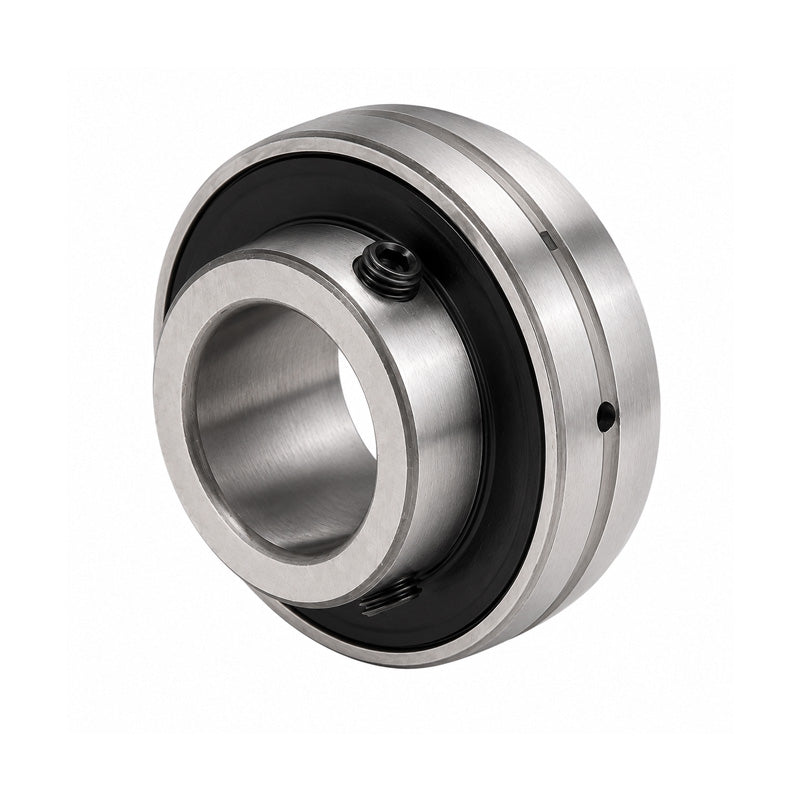

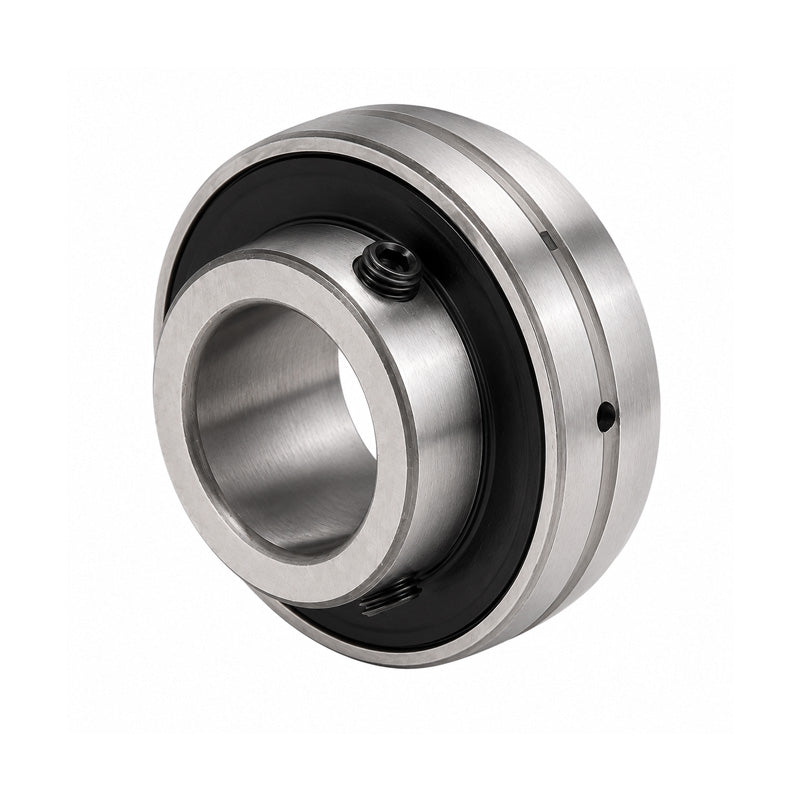

UC218-56 Imperial Bearing Insert with 3-1/2 inch Bore 160mm Outside Dia
UC218-56 Imperial Bearing Insert with 3-1/2 inch Bore 160mm Outside Dia
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Outside Diameter:
- 160mm
- Style:
- UC
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 37mm |
| n | 39.7mm |
| m | 56.3mm |
| G | 14mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 4.46 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
