• UC305 Heavy Duty Metric Bearing Insert With 25mm Bore 62mm Outside Dia
  • UC305 Heavy Duty Metric Bearing Insert With 25mm Bore 62mm Outside Dia
1 2

SKU: UC.305

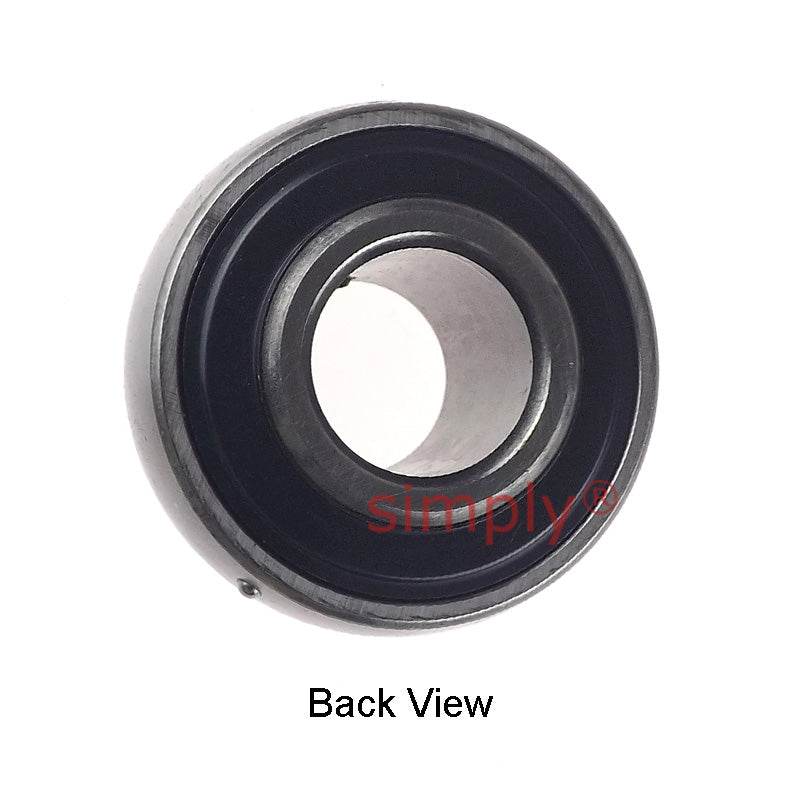

UC305 Heavy Duty Metric Bearing Insert With 25mm Bore 62mm Outside Dia

UC305 Heavy Duty Metric Bearing Insert With 25mm Bore 62mm Outside Dia
$19.41 ex VAT
$19.41 ex VAT
Sale Sold out

In stock

Price Break
3+ $13.00
4+ $12.27
9+ $12.12
19+ $11.98
49+ $11.83
99+ $11.69
499+ $10.95
999+ $10.81
1999+ $10.66
2999+ $10.52
4999+ $10.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Style:
UC
Technical
d 25mm
D 62mm
Bi 38mm
Be 22mm
n 15mm
m 23mm
G 6mm
Grub screw M6x1.0
Weight 0.45 kg
Dynamic load 1760 kgf
Static load 1160 kgf
Reviews
View full details
