SKU: UC.307-20

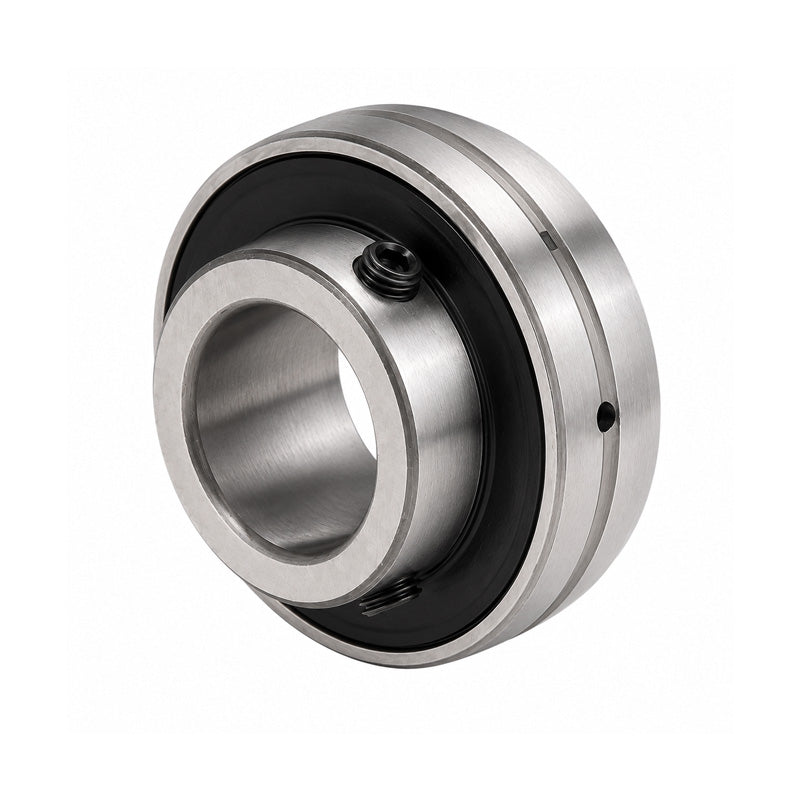

UC307-20 Heavy Duty Metric Bearing Insert With 1-1/4 inch Bore 80mm Outside Dia
UC307-20 Heavy Duty Metric Bearing Insert With 1-1/4 inch Bore 80mm Outside Dia
Out of stock
Description
Description
|
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 80mm
- Style:
- UC
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 80mm |
| Bi | 48mm |
| Be | 26mm |
| n | 19mm |
| m | 33mm |
| G | 10mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.77 kg |
| Dynamic load | 2620 kgf |
| Static load | 1830 kgf |
