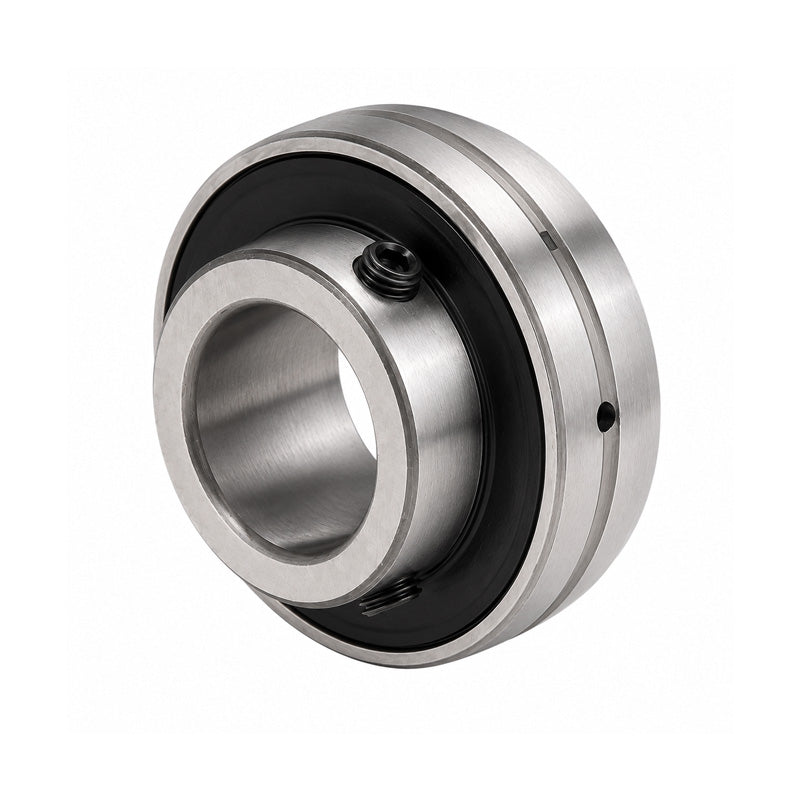

• UC309 Heavy Duty Metric Bearing Insert With 45mm Bore 100mm Outside Dia
1 1

SKU: UC.309

UC309 Heavy Duty Metric Bearing Insert With 45mm Bore 100mm Outside Dia

UC309 Heavy Duty Metric Bearing Insert With 45mm Bore 100mm Outside Dia
$35.20 ex VAT
$35.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.58
4+ $22.25
9+ $21.99
19+ $21.72
49+ $21.46
99+ $21.19
499+ $19.87
999+ $19.60
1999+ $19.34
2999+ $19.07
4999+ $18.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Style:
UC
Technical
d 45mm
D 100mm
Bi 57mm
Be 30mm
n 22mm
m 35mm
G 10mm
Grub screw M10x1.25
Weight 1.33 kg
Dynamic load 4150 kgf
Static load 3060 kgf
