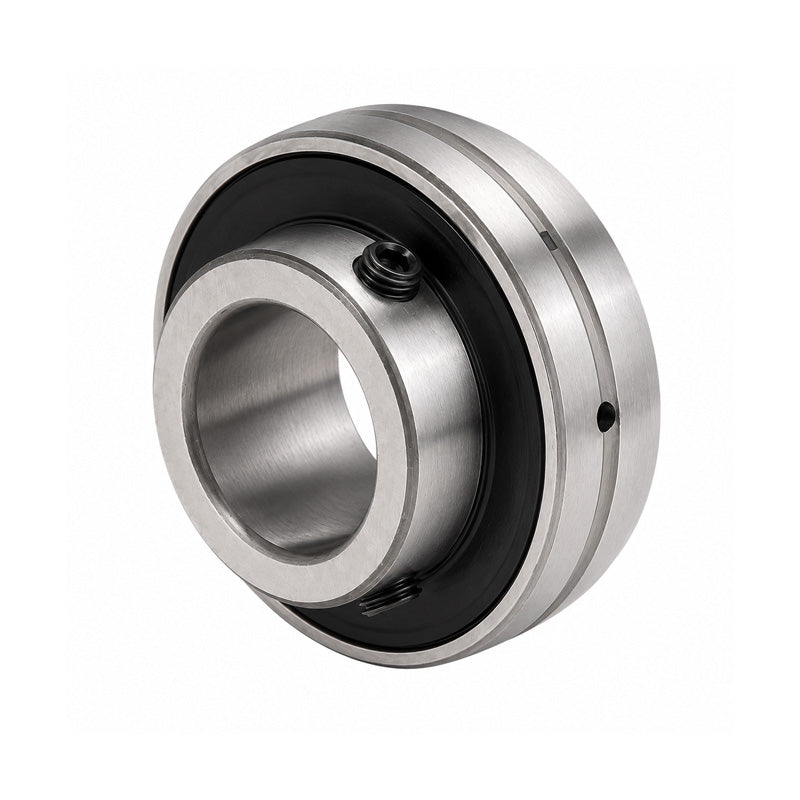

• UC313 Heavy Duty Metric Bearing Insert With 65mm Bore 140mm Outside Dia
1 1

SKU: UC.313

UC313 Heavy Duty Metric Bearing Insert With 65mm Bore 140mm Outside Dia

UC313 Heavy Duty Metric Bearing Insert With 65mm Bore 140mm Outside Dia
$84.84 ex VAT
$84.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $56.83
4+ $53.64
9+ $53.00
19+ $52.36
49+ $51.72
99+ $51.08
499+ $47.89
999+ $47.25
1999+ $46.61
2999+ $45.97
4999+ $44.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
65mm
Outside Diameter:
140mm
Style:
UC
Technical
d 65mm
D 140mm
Bi 75mm
Be 38mm
n 30mm
m 45mm
G 12mm
Grub screw M12x1.5
Weight 3.16 kg
Dynamic load 7370 kgf
Static load 5780 kgf
