• UC314 Heavy Duty Metric Bearing Insert With 70mm Bore 150mm Outside Dia
1 1

SKU: UC.314

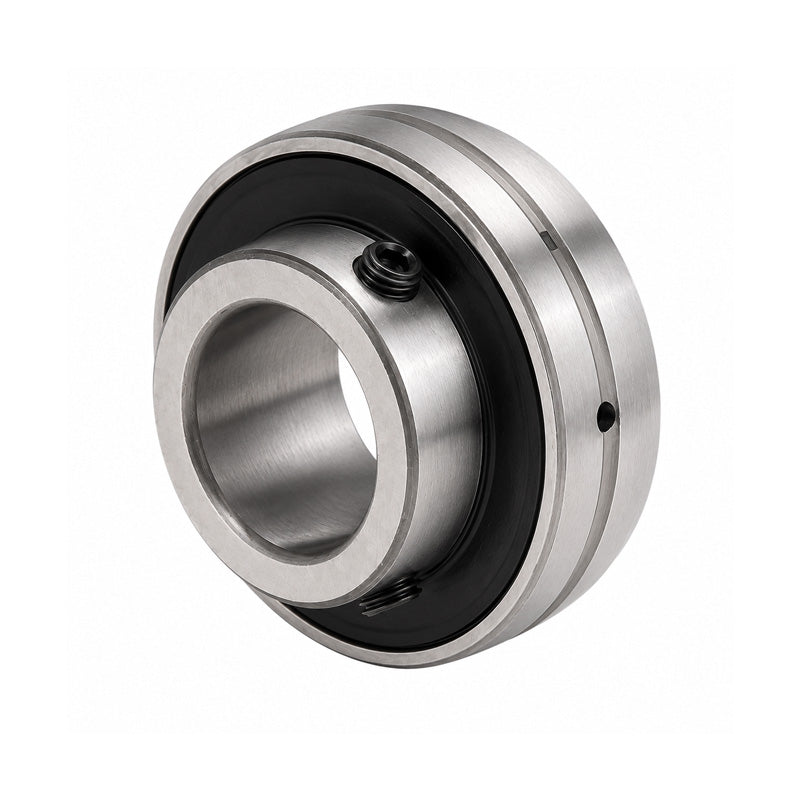

UC314 Heavy Duty Metric Bearing Insert With 70mm Bore 150mm Outside Dia

UC314 Heavy Duty Metric Bearing Insert With 70mm Bore 150mm Outside Dia
$111.23 ex VAT
$111.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $74.50
4+ $70.32
9+ $69.48
19+ $68.64
49+ $67.81
99+ $66.97
499+ $62.78
999+ $61.95
1999+ $61.11
2999+ $60.27
4999+ $58.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
70mm
Outside Diameter:
150mm
Style:
UC
Technical
d 70mm
D 150mm
Bi 78mmm
Be 40mm
n 33mm
m 45mm
G 12mm
Grub screw M12x1.5
Weight 3.90 kg
Dynamic load 8170 kgf
Static load 6480 kgf
