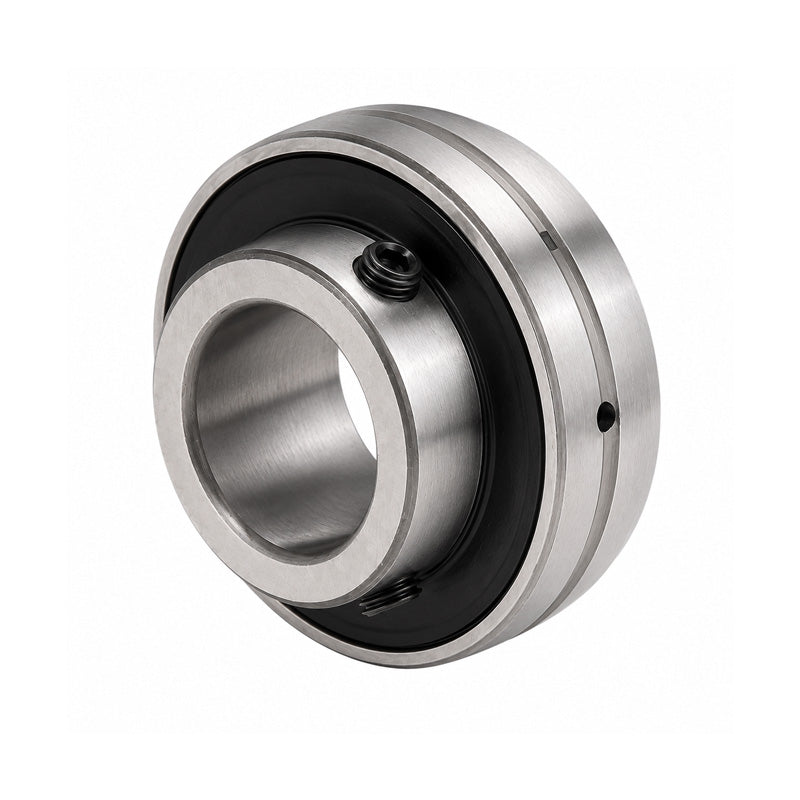

• UC316 Heavy Duty Metric Bearing Insert With 80mm Bore 170mm Outside Dia
1 1

SKU: UC.316

UC316 Heavy Duty Metric Bearing Insert With 80mm Bore 170mm Outside Dia

UC316 Heavy Duty Metric Bearing Insert With 80mm Bore 170mm Outside Dia
$147.15 ex VAT
$147.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.57
4+ $93.03
9+ $91.92
19+ $90.82
49+ $89.71
99+ $88.60
499+ $83.06
999+ $81.96
1999+ $80.85
2999+ $79.74
4999+ $77.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
80mm
Outside Diameter:
170mm
Style:
UC
Technical
d 80mm
D 170mm
Bi 86mm
Be 44mm
n 34mm
m 52mm
G 14mm
Grub screw M14X1.5
Weight 5.6 kg
Dynamic load 9650 kgf
Static load 8330 kgf
