• UC318 Heavy Duty Metric Bearing Insert With 90mm Bore 190mm Outside Dia
1 1

SKU: UC.318

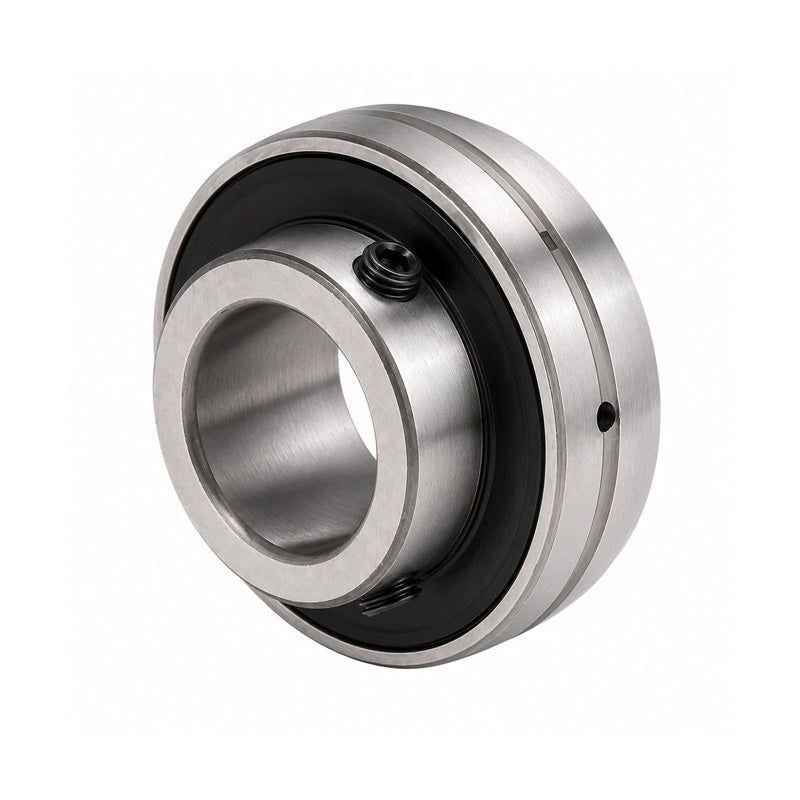

UC318 Heavy Duty Metric Bearing Insert With 90mm Bore 190mm Outside Dia

UC318 Heavy Duty Metric Bearing Insert With 90mm Bore 190mm Outside Dia
$295.62 ex VAT
$295.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $198.02
4+ $186.89
9+ $184.67
19+ $182.44
49+ $180.22
99+ $177.99
499+ $166.87
999+ $164.64
1999+ $162.42
2999+ $160.19
4999+ $155.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
90mm
Outside Diameter:
190mm
Style:
UC
Technical
d 90mm
D 190mm
Bi 96mm
Be 48mm
n 40mm
m 56mm
G 16mm
Grub screw M16x1.5
Weight 7.87 kg
Dynamic load 11300 kgf
Static load 10300 kgf
