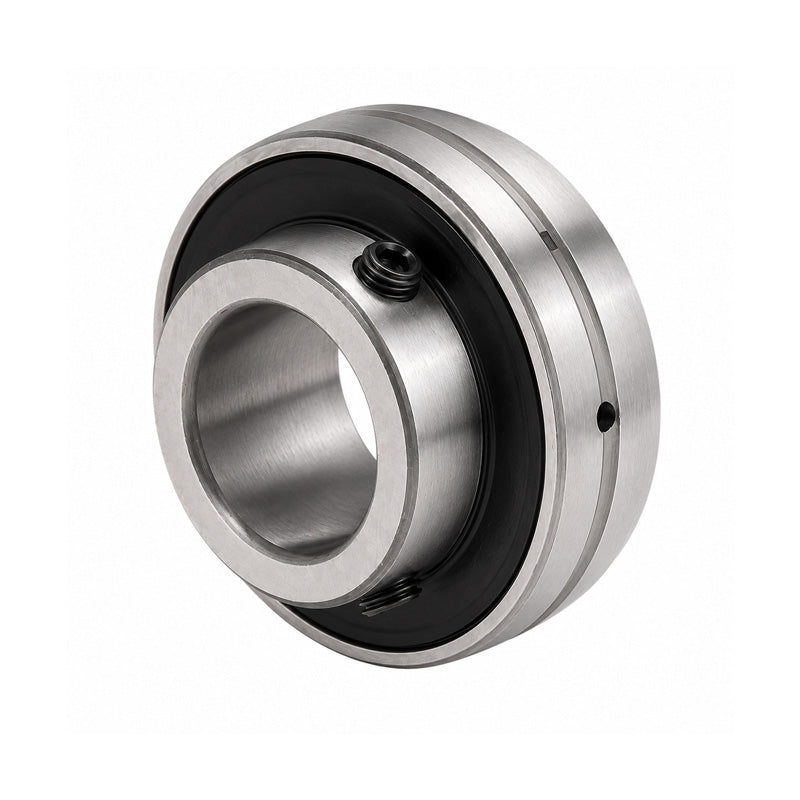

• UC320 Heavy Duty Metric Bearing Insert With 100mm Bore 215mm Outside Dia
1 1

SKU: UC.320

UC320 Heavy Duty Metric Bearing Insert With 100mm Bore 215mm Outside Dia

UC320 Heavy Duty Metric Bearing Insert With 100mm Bore 215mm Outside Dia
$422.35 ex VAT
$422.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $282.91
4+ $267.01
9+ $263.83
19+ $260.66
49+ $257.48
99+ $254.30
499+ $238.40
999+ $235.23
1999+ $232.05
2999+ $228.87
4999+ $222.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UC300 Series Bearing Insert: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required.
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
100mm
Outside Diameter:
215mm
Style:
UC
Technical
d 100mm
D 215mm
Bi 108mm
Be 54mm
n 42mm
m 66mm
G 18mm
Grub screw M18x1.5
Weight 11.2 kg
Dynamic load 13860 kgf
Static load 13580 kgf
