SKU: UC204-12G2-SNR

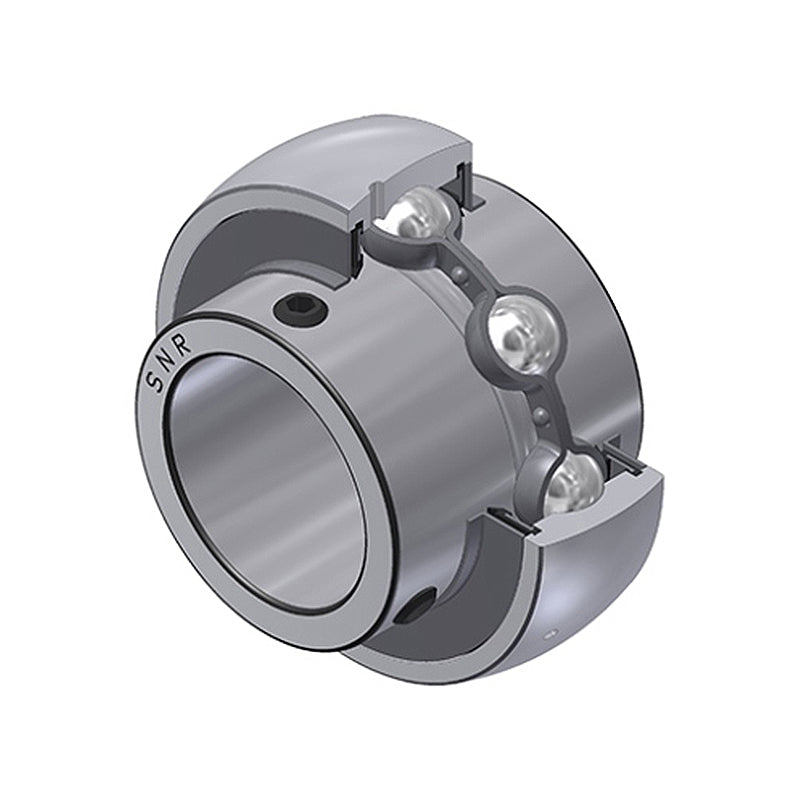

SNR UC204-12G2 Imperial Full Width Spherical Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Grub Screws

Name: SNR UC204-12G2 Imperial Full Width Spherical Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Grub Screws
Brand: SNR
SKU: UC204-12G2-SNR
Price: 16.99 USD
Availability: InStock

$16.99 ex VAT

Sale Sold out

Equivalent to: 1020-3/4G

In stock

Price Break

3+ $11.38

5+ $10.74

9+ $10.61

19+ $10.49

49+ $10.36

74+ $10.23

99+ $9.59

199+ $9.46

249+ $9.34

499+ $9.21

999+ $8.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Thread Size:: 1/4-28UNF
Inside Diameter:: 19.05mm = 0.75 (3/4) inch
Outside Diameter:: 47mm
Width:: 31mm
Style:: UC

Technical

d	3/4 inch
d	19.05mm
D	47mm
C	16mm
B	31mm
S	12.7mm
m	4.7mm
C1	4.4mm
r min	0.6mm
G	1/4-28UNF
Wrench Size	1/8 inch
Set screw torque	3.7 Nm
Min Temp	-20 deg C
Max Temp	100 deg C
Dynamic load rating C	12.8kN
Static load rating C0	6.7kN
Weight	0.2kg
