SKU: UC205-16G2-SNR

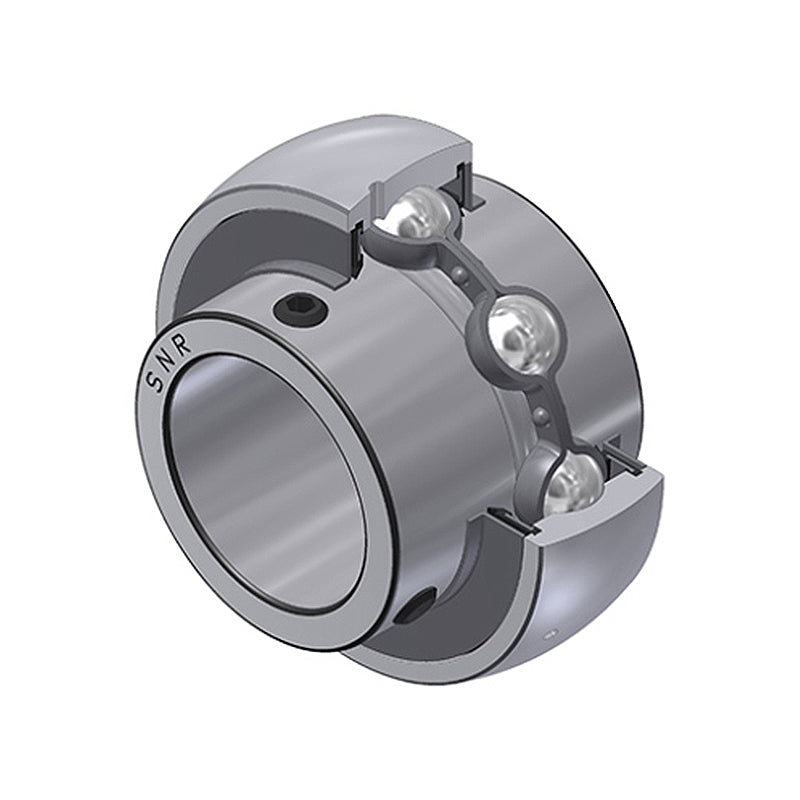

SNR UC205-16G2 Imperial Full Width Spherical Outer Bearing Insert 1 inch Bore 52mm Outside Diameter with Grub Screws

Name: SNR UC205-16G2 Imperial Full Width Spherical Outer Bearing Insert 1 inch Bore 52mm Outside Diameter with Grub Screws
Brand: SNR
SKU: UC205-16G2-SNR
Price: 20.13 USD
Availability: InStock

$20.13 ex VAT

Sale Sold out

Equivalent to: 1025-1G

In stock

Price Break

3+ $13.48

5+ $12.73

9+ $12.57

19+ $12.42

49+ $12.27

74+ $12.12

99+ $11.36

199+ $11.21

249+ $11.06

499+ $10.91

999+ $10.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Thread Size:: 1/4-28UNF
Inside Diameter:: 25.4mm = 1 inch
Outside Diameter:: 52mm
Width:: 34mm
Style:: UC

Technical

d	1 inch
d	25.4mm
D	52mm
C	17mm
B	34mm
S	14.3mm
m	5.5mm
C1	4.3mm
r min	0.6mm
G	1/4-28UNF
Wrench Size	1/8 inch
Set screw torque	3.7 Nm
Min Temp	-20 deg C
Max Temp	100 deg C
Dynamic load rating C	14kN
Static load rating C0	7.9kN
Weight	0.2kg
