SKU: UC207-20G2-SNR

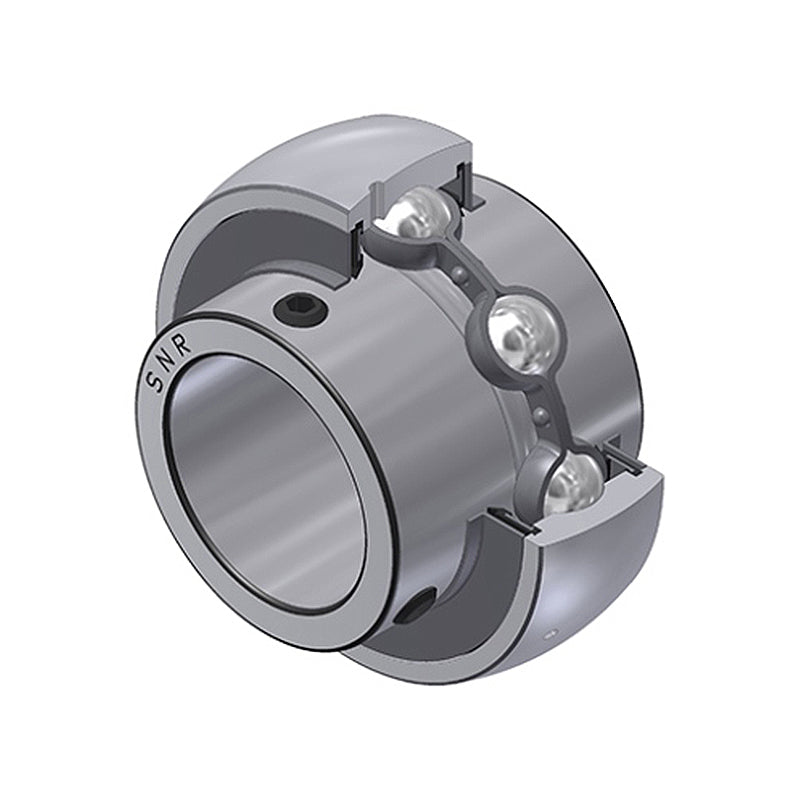

SNR UC207-20G2 Imperial Full Width Spherical Outer Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter with Grub Screws

Name: SNR UC207-20G2 Imperial Full Width Spherical Outer Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter with Grub Screws
Brand: SNR
SKU: UC207-20G2-SNR
Price: 26.84 USD
Availability: InStock

$26.84 ex VAT

Sale Sold out

Equivalent to: 1035-1-1/4G

In stock

Price Break

3+ $17.98

5+ $16.97

9+ $16.77

19+ $16.56

49+ $16.36

74+ $16.16

99+ $15.15

199+ $14.95

249+ $14.75

499+ $14.54

999+ $14.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Thread Size:: 5/16-24UNF
Inside Diameter:: 31.75mm = 1.25 (1-1/4) inch
Outside Diameter:: 72mm
Width:: 42.9mm
Style:: UC

Technical

d	1-1/4 inch
d	31.75mm
D	72mm
C	20mm
B	42.9mm
S	17.5mm
m	6.5mm
C1	5.8mm
r min	1.1mm
G	5/16-24UNF
Wrench Size	5/32 inch
Set screw torque	8 Nm
Min Temp	-20 deg C
Max Temp	100 deg C
Dynamic load rating C	25.7kN
Static load rating C0	15.2kN
Weight	0.5kg
