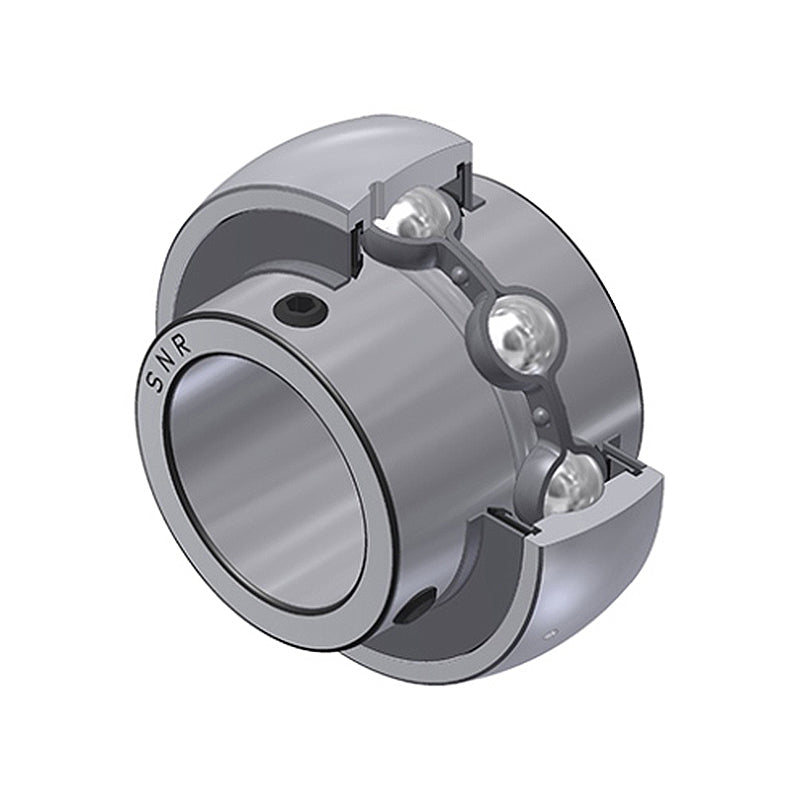

• SNR UC207G2 Metric Full Width Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws
  • SNR
1 2

SKU: UC207G2-SNR

SNR UC207G2 Metric Full Width Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws

SNR UC207G2 Metric Full Width Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws
$26.84 ex VAT
$26.84 ex VAT
Sale Sold out

Equivalent to: 1035-35G

In stock

Price Break
3+ $17.98
5+ $16.97
9+ $16.77
19+ $16.56
49+ $16.36
74+ $16.16
99+ $15.15
199+ $14.95
249+ $14.75
499+ $14.54
999+ $14.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
M8x1
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
42.9mm
Style:
UC
Technical
d 35mm
D 72mm
C 20mm
B 42.9mm
S 17.5mm
m 6.5mm
C1 5.8mm
r min 1.1mm
G M8x1
Wrench Size 4mm
Set screw torque 11.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 25.7kN
Static load rating C0 15.2kN
Weight 0.5kg
