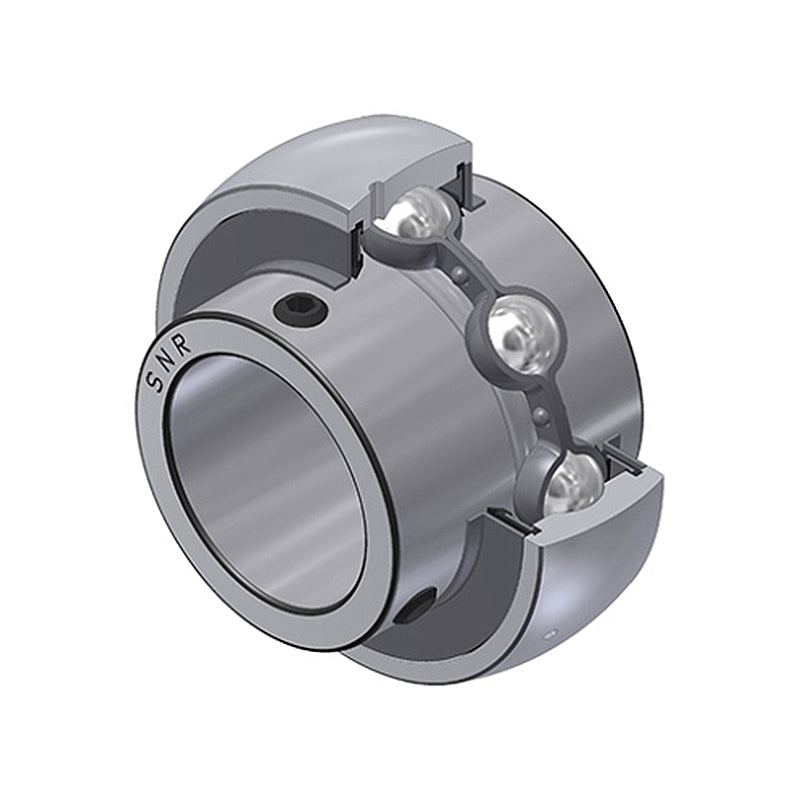

• SNR UC208-24G2 Imperial Full Width Spherical Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
  • SNR
1 2

SKU: UC208-24G2-SNR

SNR UC208-24G2 Imperial Full Width Spherical Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws

SNR UC208-24G2 Imperial Full Width Spherical Outer Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter with Grub Screws
$52.96 ex VAT
$52.96 ex VAT
Sale Sold out

Equivalent to: 1040-1-1/2G

In stock

Price Break
3+ $35.48
5+ $33.48
9+ $33.08
19+ $32.69
49+ $32.29
74+ $31.89
99+ $29.90
199+ $29.50
249+ $29.10
499+ $28.70
999+ $27.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
5/16-24UNF
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
80mm
Width:
49.2mm
Style:
UC
Technical
d 1-1/2 inch
d 38.1mm
D 80mm
C 21mm
B 49.2mm
S 19mm
m 8mm
C1 6.3mm
r min 1.1mm
G 5/16-24UNF
Wrench Size 5/32 inch
Set screw torque 8 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 29.6kN
Static load rating C0 18.2kN
Weight 0.7kg
