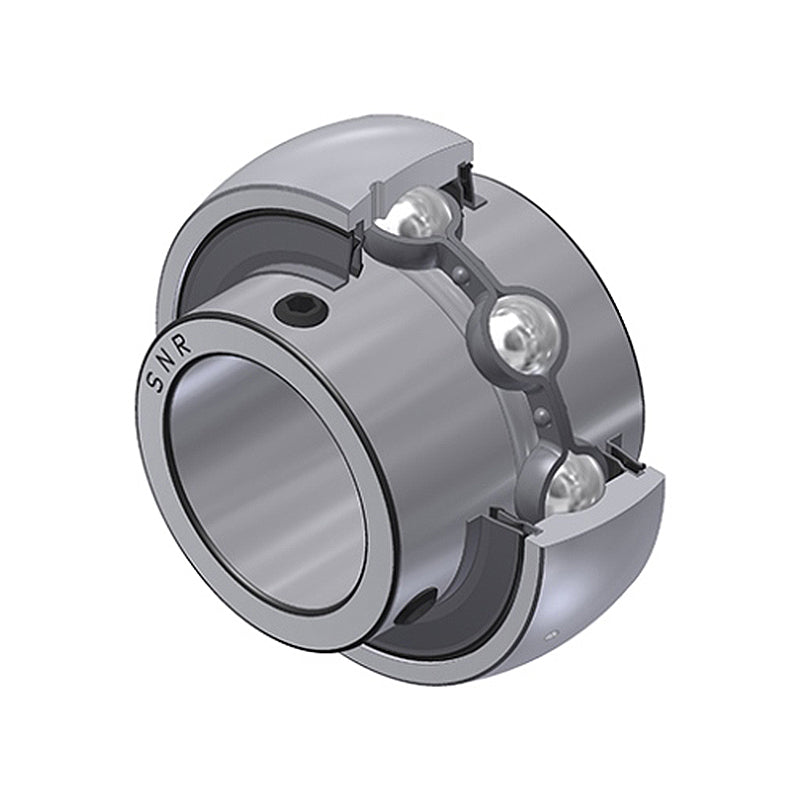

SNR UC208G2L4 Metric Full Width Spherical Outer Bearing Insert 40mm Bore 80mm Outside Diameter with Grub Screws and Multi Lip Seals - Allow 2-3 Days

SNR UC-L4 Full Width Spherical Outer Bearing Insert with Grub Screws and Multi Lip Seals: This bearing insert is engineered to thrive in challenging environments, featuring a multiple seal system on each side of the insert to withstand heavily dirt-contaminated conditions. Each steel insert includes a wide inner ring design and is zinc-coated with reduced internal clearance, offering protection against moderate torque and corrosion. It incorporates two zinc-coated steel sheet elements with vulcanized seal lips from NBR, where the internal retainer is equipped with a radial seal to the inner ring and the external slinger has a radial seal to the outer ring. A third seal lip is intermediate and acts axially. This insert is designed for medium to heavily polluted environments, medium rotation speeds, and lower friction. It's also suitable for pressure washing applications.
Benefits: High-quality brand, high-performance, multi lip sealed

Brand / Quality:

SNR - High Quality

Thread Size:

M8x1

Inside Diameter:

40mm

Outside Diameter:

80mm

Width:

49.2mm

Seals / Shields:

Rubber Sealed

Style:

UC
