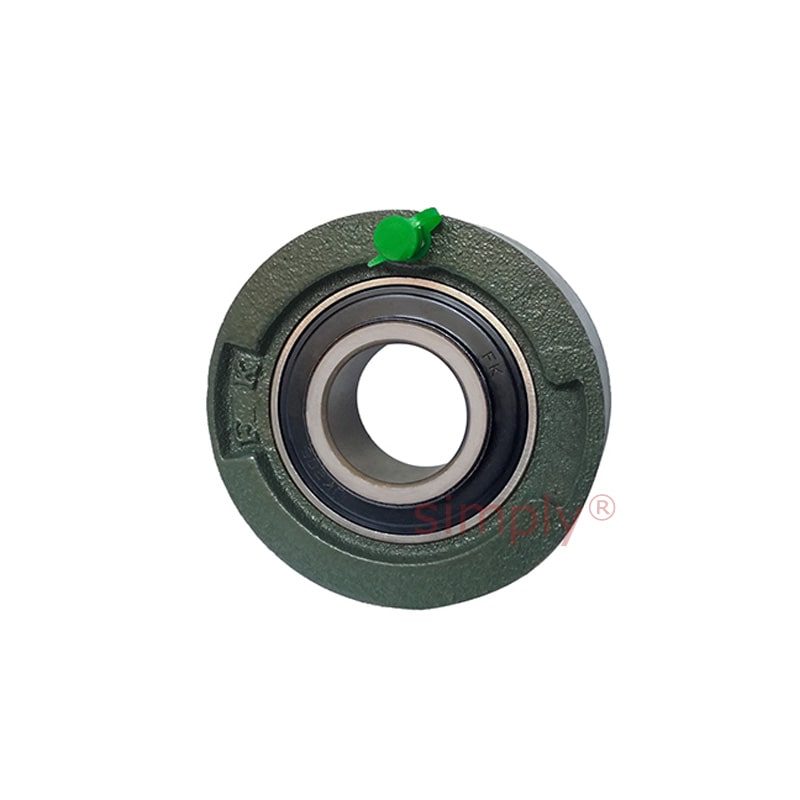

UCCX05-13 Imperial Cast Iron Medium Duty Cartridge Unit with 13/16 inch Bore Insert 3.5433 inch Outside Dia

UCCX Series (Medium Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

20.64mm = 0.813 (13/16) inch

Outside Diameter:

90mm = 3.5433 inch

Style:

UCCX
