SKU: UCEHE201-SNR

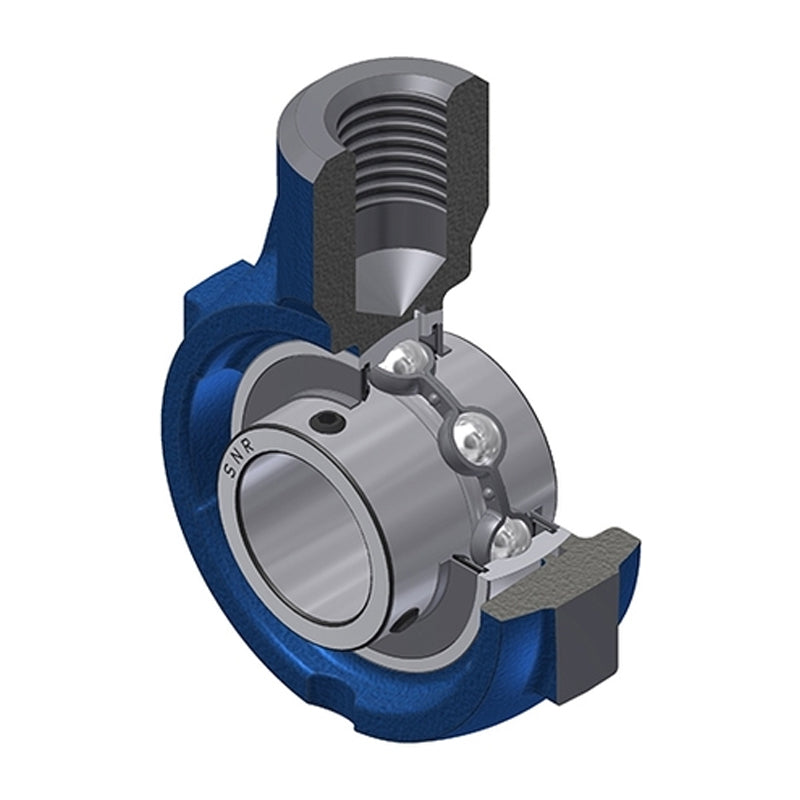

SNR UCEHE201 Metric Cast Iron Hanger Bearing Unit with 12mm Bore Insert - Allow 2-3 Days
SNR UCEHE201 Metric Cast Iron Hanger Bearing Unit with 12mm Bore Insert - Allow 2-3 Days
Regular price
$35.30
ex VAT
Regular price
Sale price
$35.30
ex VAT
In stock
Price Break
3+
$26.29
4+
$25.23
9+
$24.70
19+
$23.90
49+
$23.37
99+
$22.04
499+
$18.59
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| A | 25mm |
| A2 | 30mm |
| B | 31mm |
| E | 21mm |
| H | 65mm |
| L | 91mm |
| L1 | 58mm |
| L3 | 38mm |
| S | 12.7mm |
| G | R1/8″ |
| G1 | M16 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.61 kg |
