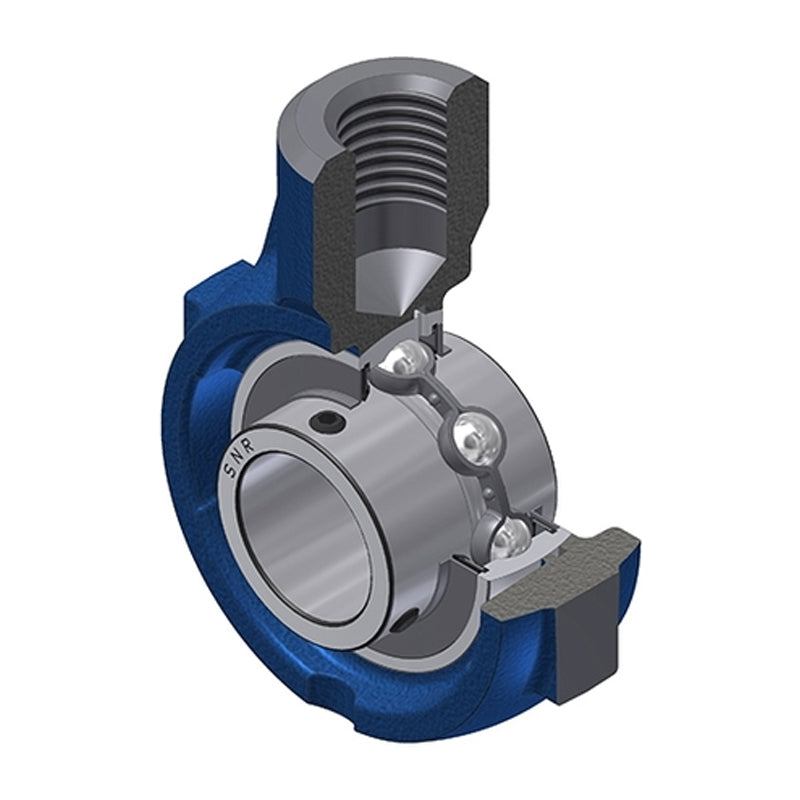

• SNR UCEHE207-20 Imperial Cast Iron Hanger Bearing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCEHE207-20-SNR

SNR UCEHE207-20 Imperial Cast Iron Hanger Bearing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days

SNR UCEHE207-20 Imperial Cast Iron Hanger Bearing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
4+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
99+ $32.39
499+ $30.36
999+ $29.96
1999+ $29.55
2999+ $29.15
4999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCEHE
Technical
--- Dimensions
Shaft diameter 1-1/4 inch
A 32mm
A2 40mm
B 42.9mm
E 24mm
H 90mm
L 122mm
L1 76mm
L3 40mm
S 17.5mm
G R1/8″
G1 M24
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.23 kg
