SKU: UCEHE207-22-SNR

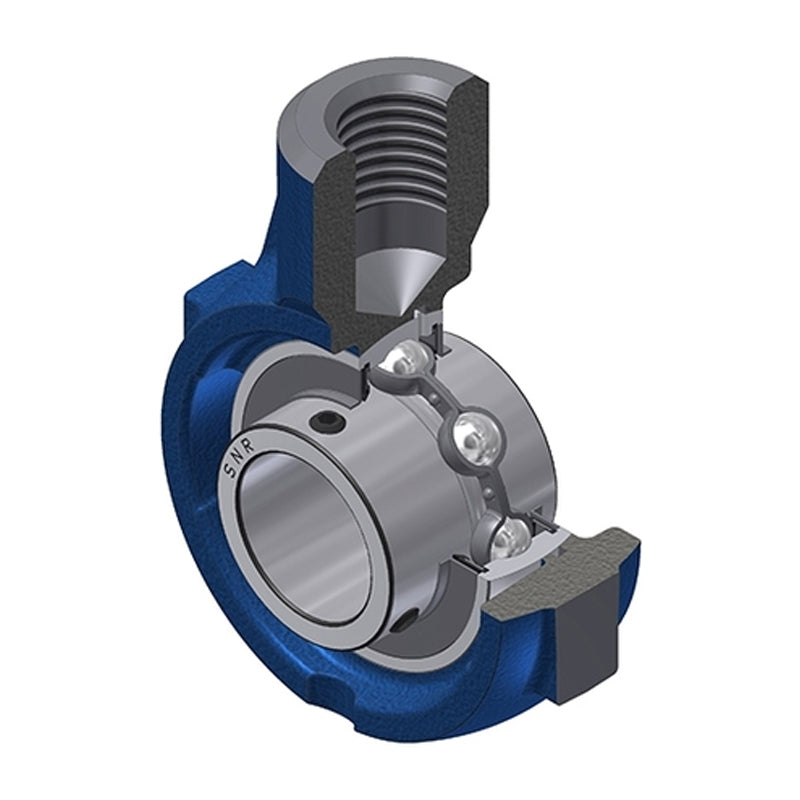

SNR UCEHE207-22 Imperial Cast Iron Hanger Bearing Unit with 1-3/8 inch Bore Insert - Allow 2-3 Days
SNR UCEHE207-22 Imperial Cast Iron Hanger Bearing Unit with 1-3/8 inch Bore Insert - Allow 2-3 Days
Regular price
$73.55
ex VAT
Regular price
Sale price
$73.55
ex VAT
In stock
Price Break
3+
$54.80
4+
$52.58
9+
$51.48
19+
$49.82
49+
$48.71
99+
$45.94
499+
$38.75
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/8 inch |
| A | 32mm |
| A2 | 40mm |
| B | 42.9mm |
| E | 24mm |
| H | 90mm |
| L | 122mm |
| L1 | 76mm |
| L3 | 40mm |
| S | 17.5mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.18 kg |
