SKU: UCEHE208L3-SNR

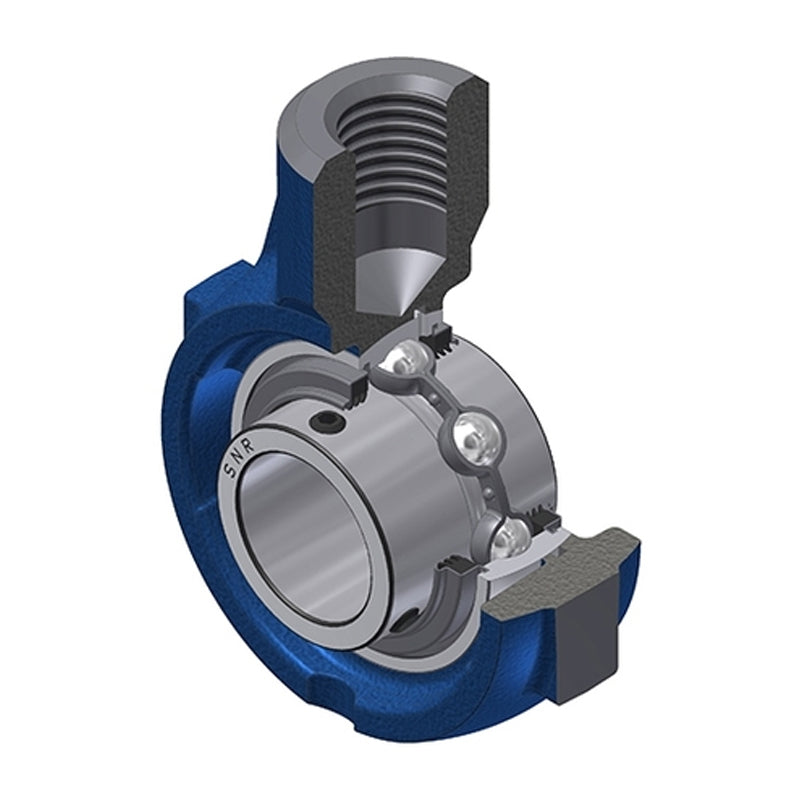

SNR UCEHE208L3 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCEHE208L3 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
$88.36
ex VAT
Regular price
Sale price
$88.36
ex VAT
In stock
Price Break
3+
$65.83
4+
$63.17
9+
$61.84
19+
$59.84
49+
$58.51
99+
$55.19
499+
$46.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 36mm |
| A2 | 40mm |
| B | 49.2mm |
| E | 24mm |
| H | 100mm |
| L | 135mm |
| L1 | 85mm |
| L3 | 45mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.54 kg |
