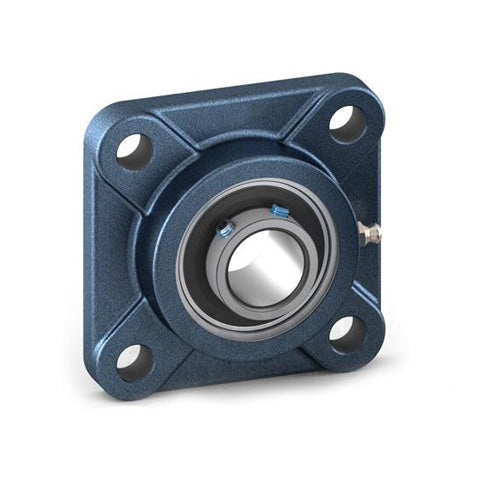

• Challenge / FK UCF201 Metric Cast Iron Four Bolt Square Flange Housing with 12mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCF.201.TS.CHAL

Challenge / FK UCF201 Metric Cast Iron Four Bolt Square Flange Housing with 12mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCF201 Metric Cast Iron Four Bolt Square Flange Housing with 12mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$31.90 ex VAT
$31.90 ex VAT
Sale Sold out

Equivalent to: UCF.201

In stock

Price Break
3+ $21.37
5+ $20.17
9+ $19.93
19+ $19.69
49+ $19.45
74+ $19.21
99+ $18.01
199+ $17.77
249+ $17.53
499+ $17.29
999+ $16.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
12mm
Style:
UCF
Bolt Hole Centres:
64mm
Technical
Shaft Diameter d 12mm
Width a 86mm
Recommended Bolt Centres L 64mm
Back of Casting to Centre Line of Bearing i 15mm
Depth of Casting at Bolt g 12mm
Overall Casting Height l 25.5mm
Bolt Hole Diameter s 12mm
Back of Casting to Bearing Front z 33.3mm
Bearing Insert Width Bi 31mm
Back of Bearing to Centre Line n 12.7mm
Working Temperature -30°C to +120°C
Insert No UC201
Housing No F201
