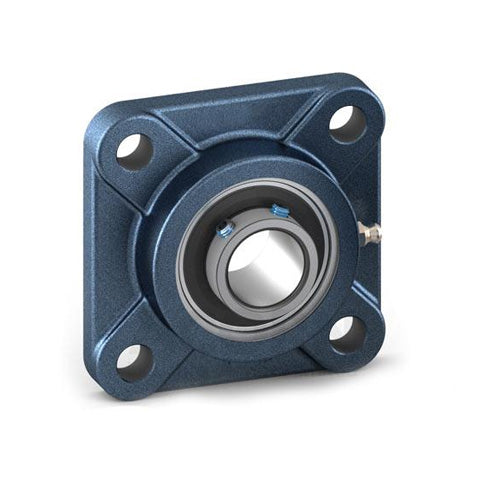

• Challenge / FK UCF204-12 Imperial Cast Iron Four Bolt Square Flange Housing with 3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCF.204-12.TS.CHAL

Challenge / FK UCF204-12 Imperial Cast Iron Four Bolt Square Flange Housing with 3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCF204-12 Imperial Cast Iron Four Bolt Square Flange Housing with 3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$29.79 ex VAT
$29.79 ex VAT
Sale Sold out

Equivalent to: UCF.204-12

In stock

Price Break
3+ $19.95
5+ $18.83
9+ $18.61
19+ $18.38
49+ $18.16
74+ $17.94
99+ $16.81
199+ $16.59
249+ $16.37
499+ $16.14
999+ $15.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
UCF
Bolt Hole Centres:
64mm
Technical
Shaft Diameter d 3/4 inch
Width a 86mm
Recommended Bolt Centres L 64mm
Back of Casting to Centre Line of Bearing i 15mm
Depth of Casting at Bolt g 12mm
Overall Casting Height l 25.5mm
Bolt Hole Diameter s 12mm
Back of Casting to Bearing Front z 33.3mm
Bearing Insert Width Bi 31mm
Back of Bearing to Centre Line n 12.7mm
Bolt Size 3/8 inch
Grub Screws x 2 1/4 - 28UNF inch
Load Rating (Dynamic) 1000kg
Load Rating (Static) 630kg
Max Speed 4000 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC204-12
Housing No F204
